Semi-auto Rigid Box MachineHOME > PRODUCTS > Semi-auto Rigid Box Machine

Product Display

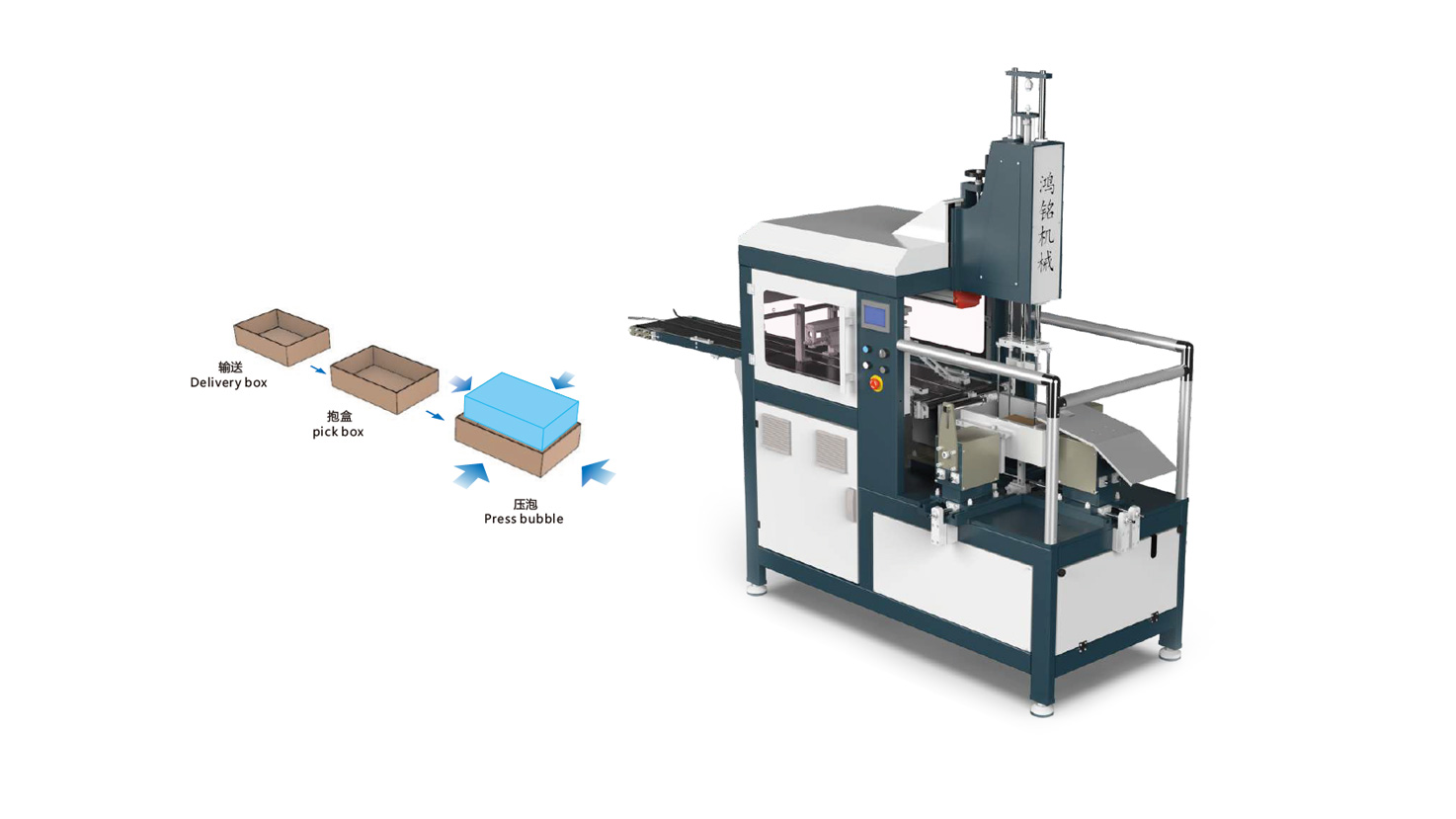

HM-YP400 Automatic Box Pressing Machine is mainly for avoiding box bubbles, and is extensively suitable for cell-phone boxes, gift boxes, cosmetics boxes, watch boxes, slanting boxes. The machine adopts the whole-frame design, safe and beautiful, stable operation.

HM-YP400 is usually connected after the fully automatic rigid box machine, which can realize automatic box bubbles removing. This machine also can be used independently, but needs worker to put on box manually. The whole machine adopts PLC, bringing high-automation, simple operate and easy maintenance.

Features and Functions:

1.      Robot can automatic catch box.

2.      It can adjust cylinder pressure stroke according to the height of box.

3.      Delivery belt will automatic to stop working after box into it.

4.      Box-out direction can be changed freely.

5.      Box-release structure adopt needle to make it back.

6.      Use automatic stop system when machine have error.

7.      This machine can move freely.

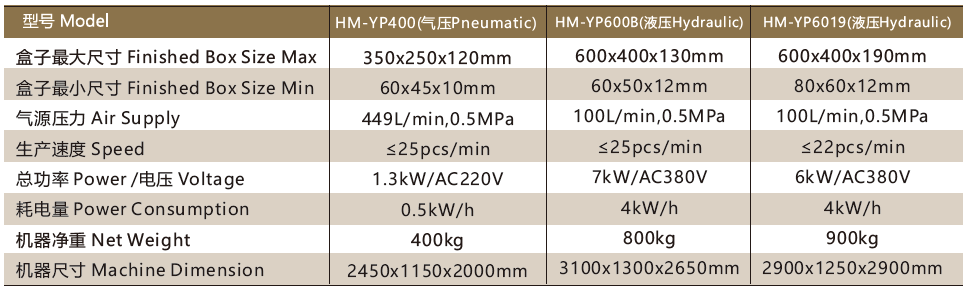

Parameters

Model

HM-YP400

Finished Box Size Max.

350x250x120mm

Finished Box Size Min.

60x45x10mm

Speed

25PCS/min

Power

0.5kW

Air Supply

449L/min, 0.5MPa

Net Weight

400kg

Machine Dimension

2450x1150x2000mm

Unit Price:

USD  SHENZHEN

Payment terms

T/T 30 for deposit, T/T 70% before shipment.

Delivery time

20 days
