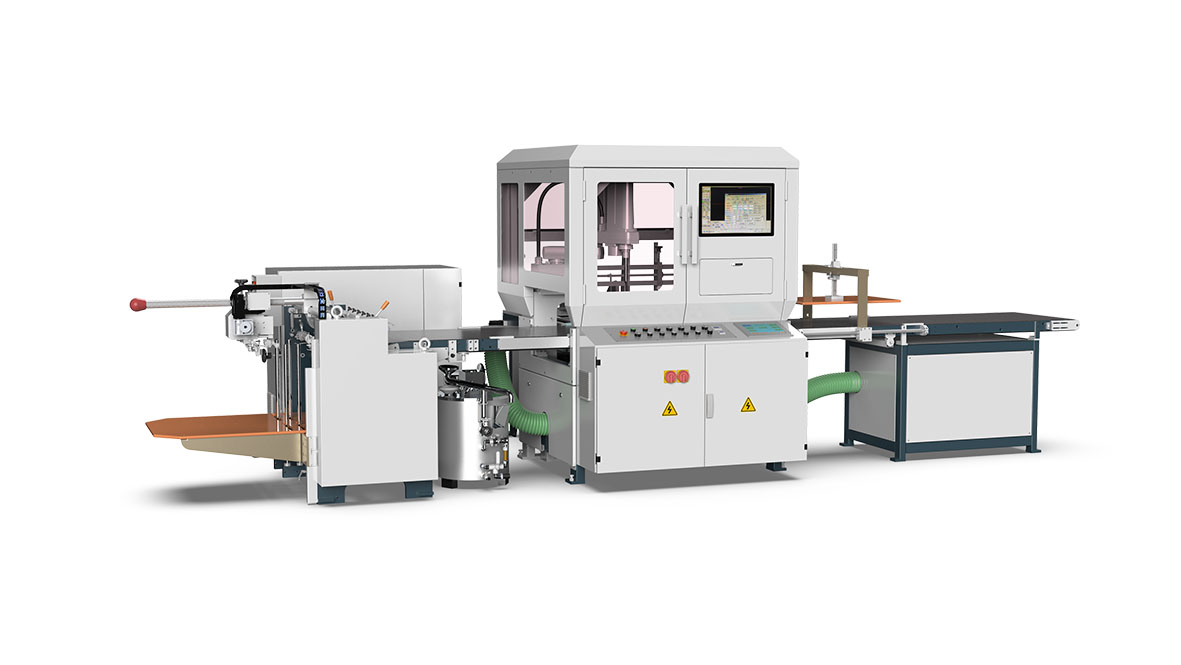

HM-ZD600E Automatic Gluing and Spotter Machine is a combination from HM-ZD600 and HM-ZD240. This machine is unique and precise for its 4-axis servo and camera tracing system to spotter the pasted greyboard box onto the coated paper. So this new machine carries out a fantastic job in mass producing every kinds of high end rigid boxes, such as cellphone boxes, shirt boxes, candy boxes and gift boxes, etc.

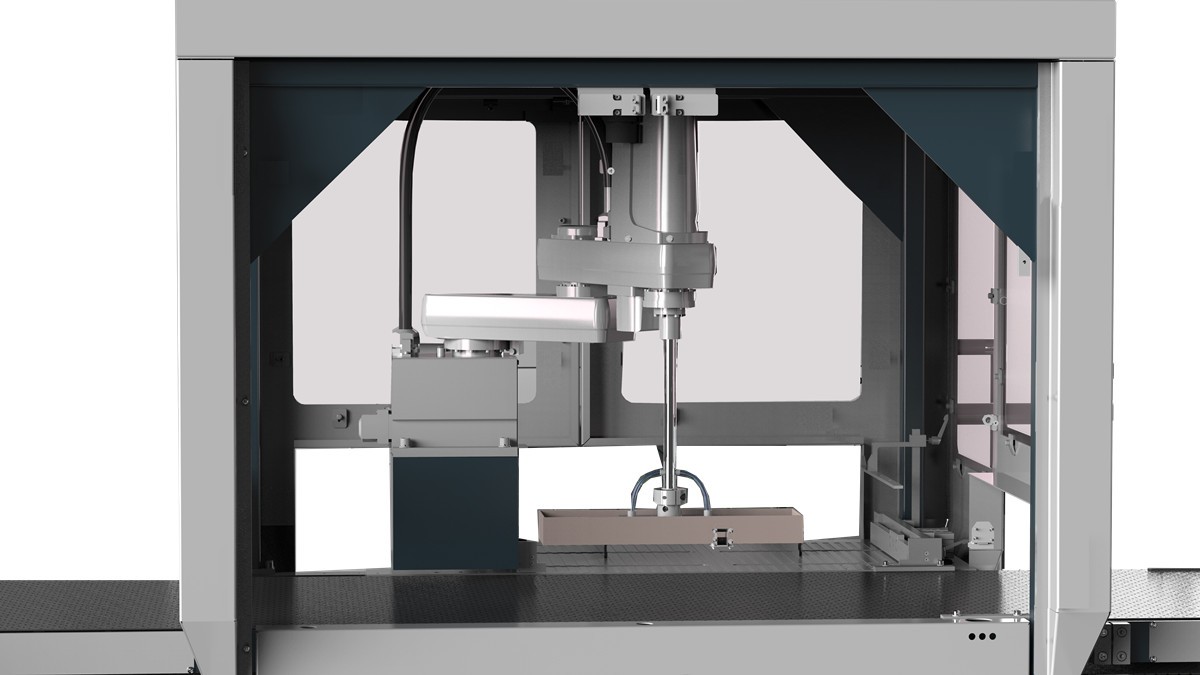

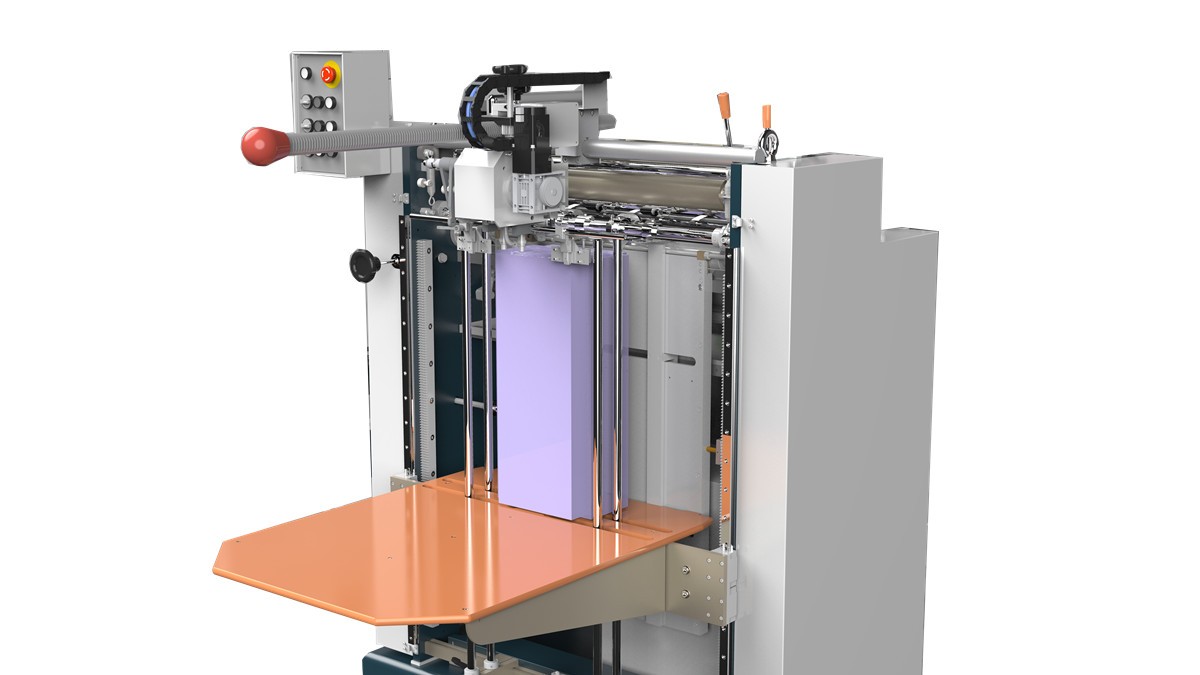

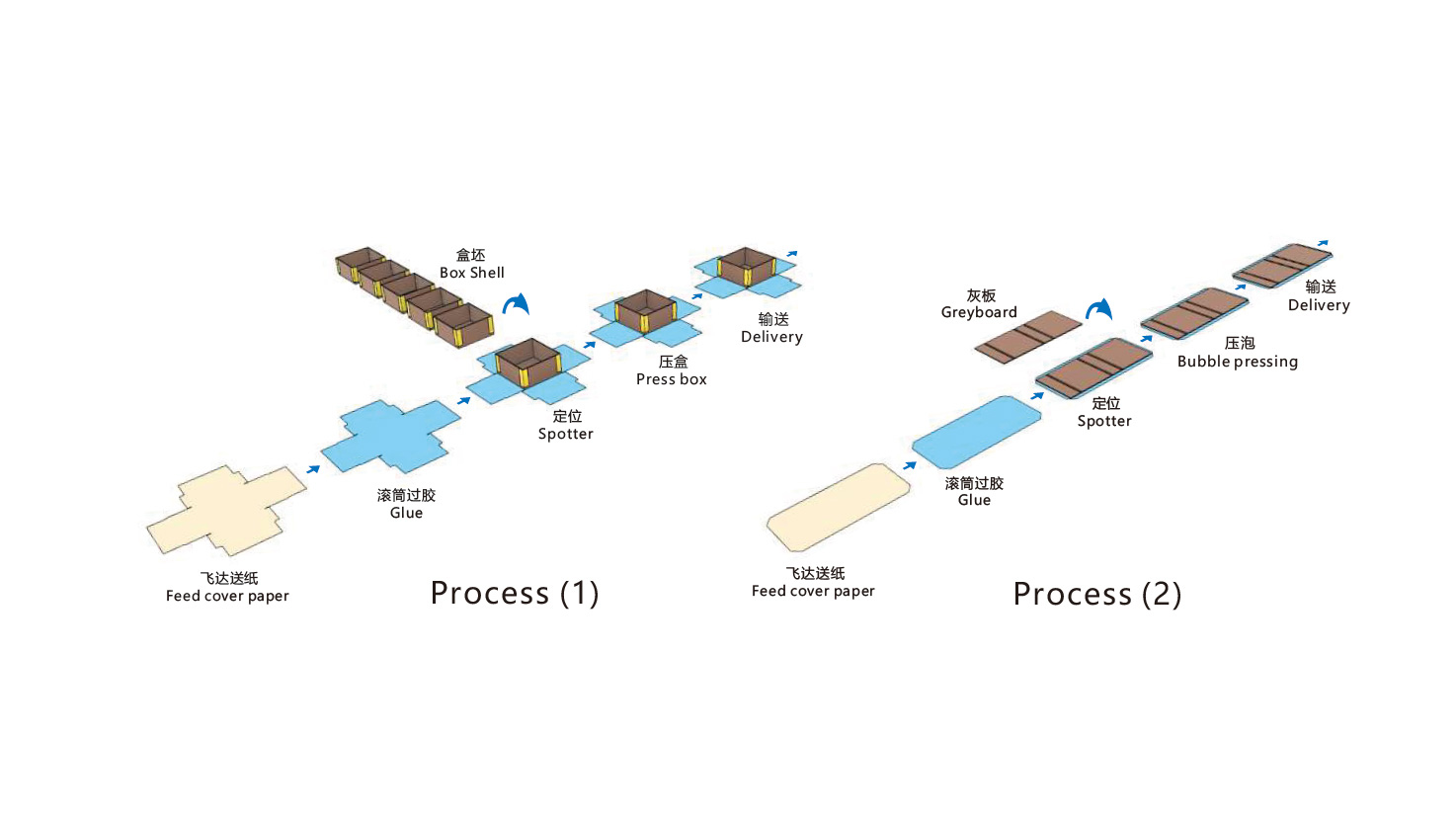

This machine adopts Japanese Panasonic PLC and man-machine control, camera tracing system, 4-axis servo to rectifying system. The feeder, gluer and conveyor are driven by servo system which has continuously variable transmission and enjoys high accuracy, easy adjusting, and less time consumption. Double color conveyor can save the time for changing to other color belt, which is Hongming’s patent. The spot unit adopts Germany camera with 5 million pixels and robot arm to pick and spot the greyboard, enhancing the spotting accuracy to within 0.05mm.



This whole machine only needs 1 or 2 operators and outputs about 1200-1800 pcs/hour.



1.Suit to all kinds of rigid boxes in mass production;

2.Employ Japanese Panasonic PLC and man-machine control;

3. Computer control with error auto stop and display;

4. Automatically feed paper and deliver greyboard box;

5. 24-hours control for glue pre-heating;

6. 4-axis servo to grab the greyboard box;

7. Spotter by Spotter by camera (spotting inaccuracy ±0.05mm.)

8. Automatic control system for glue viscosity(optional).

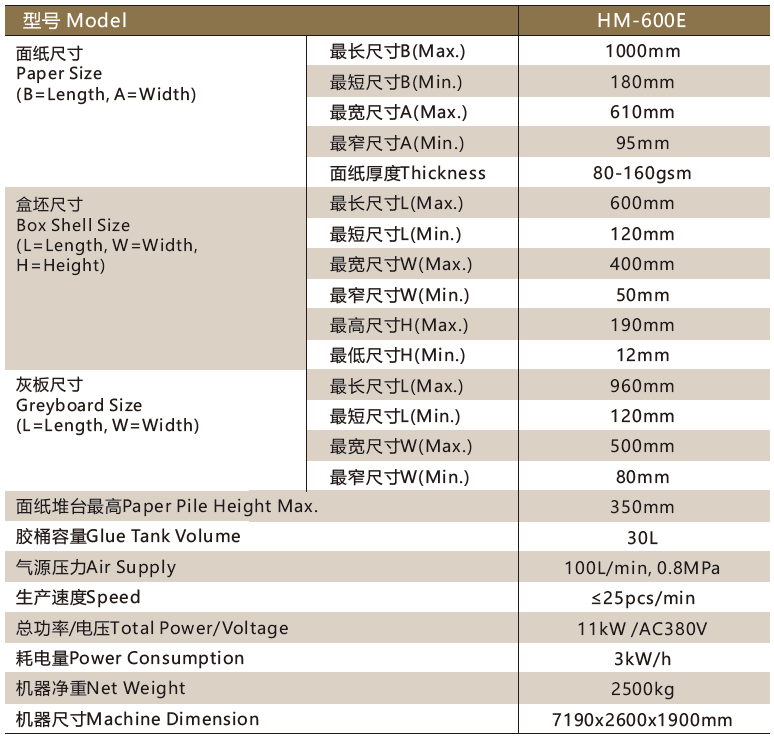

Technical Parameters:

Model

HM-ZD600E

Paper Size

B=Length, A=Width

A(Max.)

610mm

A(Min.)

95mm

B(Max.)

850mm

B(Min.)

180mm

Thickness

80-160gsm

Finished Box Size

L=Length W=Width

H=Height

LxW (Max.)

600x400mm

LxW (Min.)

100x50mm

H(Max.)

130mm

H(Min.)

12mm

Greyboard Thickness

T(Max.)

3mm

T(Min.)

1mm

Folding-in Depth

Folding-in Size R

10-45mm

Speed

30pcs/min

Voltage

AC380V

Machine Power

10kW

Heating Power

4kW

Net Weight

3000kg

Machine Dimension

6500mmx4200mmx2650mm
