    • Name of commodity:HM-ZD240 Automatic Rigid Box Maker

    • Phone:

    This Semi-auto Case Makre is the earliest in China which is dedicated to free workers from total manual work on bookcase making, and during 15 years it has gained great success and praise


    TAG:  Automatic rigid box machine cardboard box machine paper box machine cosmetic box machine
  • Contact us

Product Display

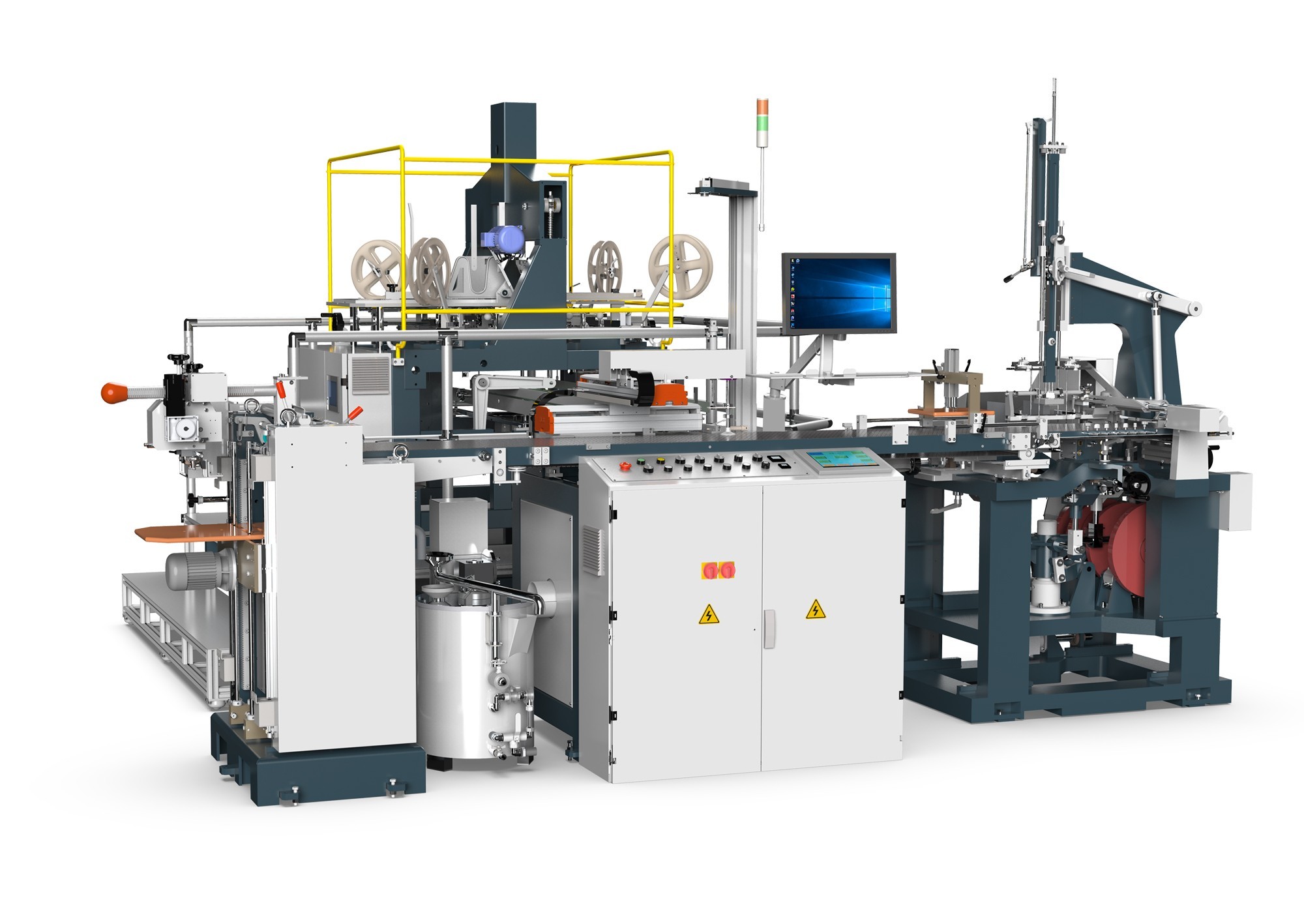

HM-ZD240 Automatic Rigid Box Maker

HM-ZD240 Automatic Rigid Box Making Machine is specialized in mass producing all kinds of small rigid boxes, such as finest jewlery box, ornaments box, gift box, watch box, pencil box, candy box, souvenir box, and cosmetic box, etc. The minimum size for wrapped box is 45x35x10mm, which covers the finger ring box. It is the smallest automatic box maker in China.

This machine adapts Japanese Panasonic PLC and man-machine control, error auto stop and display, camera tracing system, and can automatically feed coverpaper, feed greyboard, paste four corners, spot greyboard, grab box, wrap box, fold corner edges and form box.

The feeder, gluer and conveyor are driven by servo system which has continuously variable transmission and enjoys high accuracy, easy adjusting, and less time consumption. Double color conveyor can save the time for changing to other color belt, which is Hongming’s patent. The spot unit adopts Germany camera with 5 million pixel and Japanese robot arm to pick and spot the greyboard, enhancing the spotting accuracy to within 0.05mm. The forming unit employs foreign linear slider, stable and wear resistant.

This whole machine only needs 1 or 2 operators and outputs about 1500-1800 boxes/hour.



1. Suit to all kinds of rigid boxes in mass production;

2. Employ Japanese Panasonic PLC, camera tracing system and man-machine control to automatically form boxes in one process;

3. Computer control with error auto stop and display;

4. Automatically feed paper and greyboard;

5. 24 hours control for glue pre-heating;

6. Automatically cut and heat tape to paste the greyboard box’s quad stayer (four corners), with independent man-machine control;

7. Spotter by camara and robot arm (spotting accuracy ≤0.05mm.) ;

8. Wrapping unit can automatically and continually deliver box, wrap paper, fold corner edge, fold in and form box;

9. Remodel for irregular boxes and plastic boxes (optional);

10. Automatic control system for glue viscosity(optional).





Specification

Automatic rigid box maker

HM-ZD240



Paper Sheet Size

B=Length, A=Width

A ( max.)

305mm

A ( min.)

45mm

A ( max.)

450mm

A ( min.)

110mm



Finish product (Box )Size

L=Length W=Width

H=Height T=Thickness

L ( max.)

240mm

L ( min.)

45mm

W ( max.)

160mm

W ( min.)

35mm

H ( max.)

80mm

H ( min.)

10mm

Cardboard thickness (T)

T ( max.)

3mm

T ( min.)

0.5mm

Thickness of Paper

Thickness Range

80-160gsm

Folding Edge size ( R )

R

8mm-20mm

Speed

18-32pcs/min

Voltage

AC380V

Power

13kW

Net Weight

3300kg

 Machine Dimension

4500x4000x2600mm


Note:

1.The max. size and the min. size of box are determined by the max. and min. size of paper.A(Min.)<w+2h+2t+2r

2.The production speed of the rigid box maker is determined by the box size, paper and greyboard materials.

3.We don’t provide air compressor. ( 6 atm=0.606mpa, 5.5KW compressor is needed)
