Automatic Rigid Box MachineHOME > PRODUCTS > Automatic Rigid Box Machine
  • HM-3525 Greyboard Assembling Machine
  • HM-3525 Greyboard Assembling Machine

Product Display

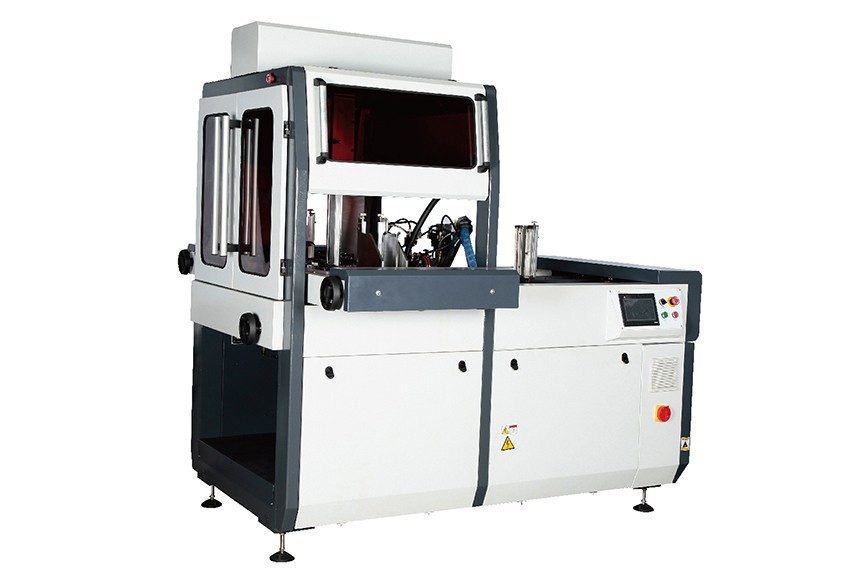

HM-3525 Greyboard Assembling Machine is specially for rigid boxes’ greyboard assembling. Its main purpose is to save the greyboard loss and make the rigid box making industrial environmentally friendly.



Features and function:

1.    Two side boards attaching to the triple board, greatly decreases the greyboard material loss.

2.    The glue spray can output even glue between the attaches, without lack glue or leaking glue.

3.    Glue thickness can be adjusted.

4.    Spot is highly accurate within 0.2mm.

5.    Adopt PLC to control the machine, simple Interface, easy operation, and every unit can be independently adjusted.





Technical Parameters



Model

HM-3525

Finished Box size

L=length
W=width
H=height

L (Max.)

350mm

L (Min.)

100mm

W(Max.)

250mm

W (Min.)

70mm

H(Max.)

150mm

H (Min.)

20mm

Speed

20-30pcs/min

Machine Power

7kW

Voltage

AC380V

Glue Type

Hot-melt Glue

Glue Tank Volume

6L

Air Supply

300L/min, 0.8MPa

Net Weight

1200kg

Machine Dimension

2100x2300x2100mm
