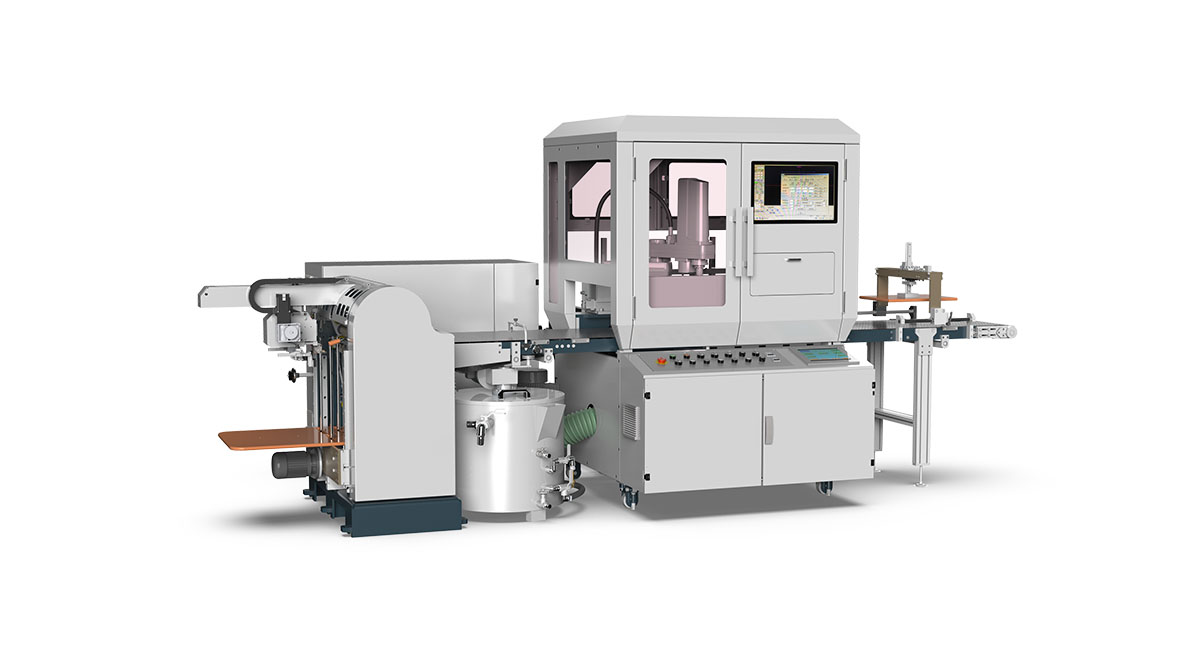

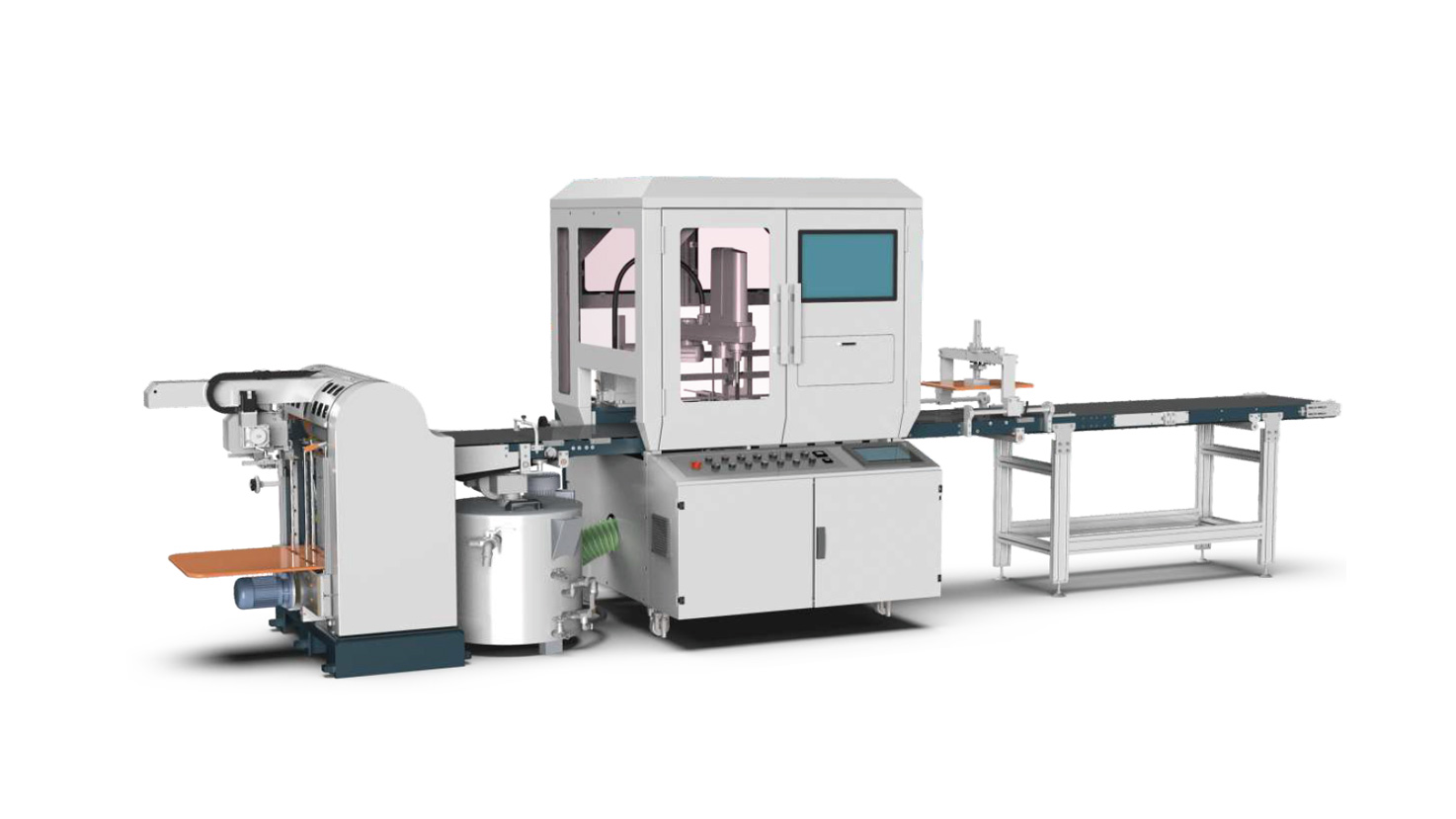

HM-350FX/350E Automatic Gluing and Spotter Machine Description:

HM-ZD350FX Automatic Gluing and Spotter Machine is an automatic equipment with multifunction for highprecision positioning of small-sized premium boxes and hard cover.

 HM-ZD350E is a high-precision positioning for small-sized premium box, It's suitable to all kinds of paper and box  shells positioning processes.

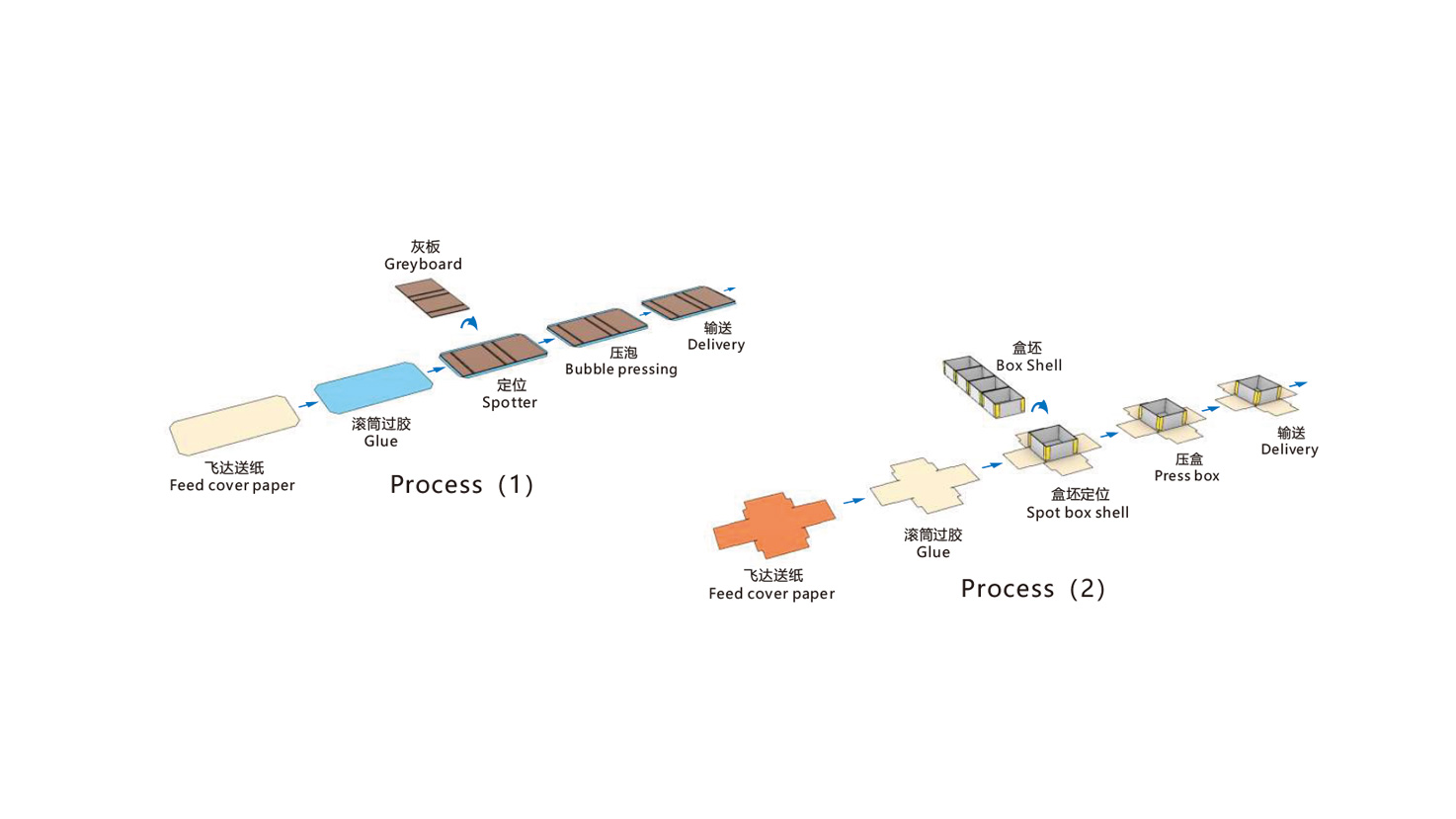

This machine adopts PLC , man-machine control and CCD positioning system, which enable the machine to feed paper, gluing and spotter the box automatically and fluently. The feeder, the gluer and the conveyor are driven by servo system which has continuously variable transmission and enjoys high accuracy, easy adjusting and high efficiency. The spotting unit adopts camera tracing system and robot arm to pick and spot the greyboard, enhancing the spotting accuracy to ±0.05mm, with even faster speed.


HM-350FX/350E Automatic Gluing and Spotter Machine


Features and function:

1. Suit to all kinds of paper and box shells positioning process
2. Suit to all kinds of paper and cardboard positioning process (For
HM-ZD350FX only)
3. Parameter adopts computer digital setting.
4. Auto error stop and display..

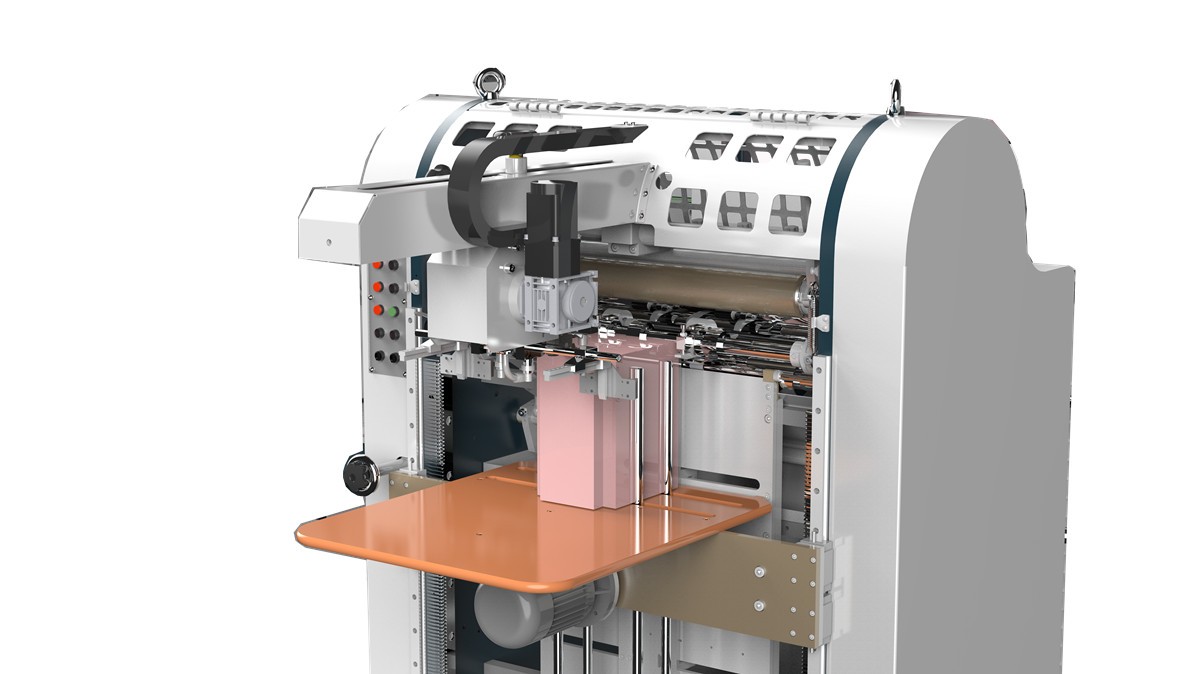

5. Automatic feed paper.
6. 24-hours control for glue pre-heating
7. Servo system for controlling the whole machine.

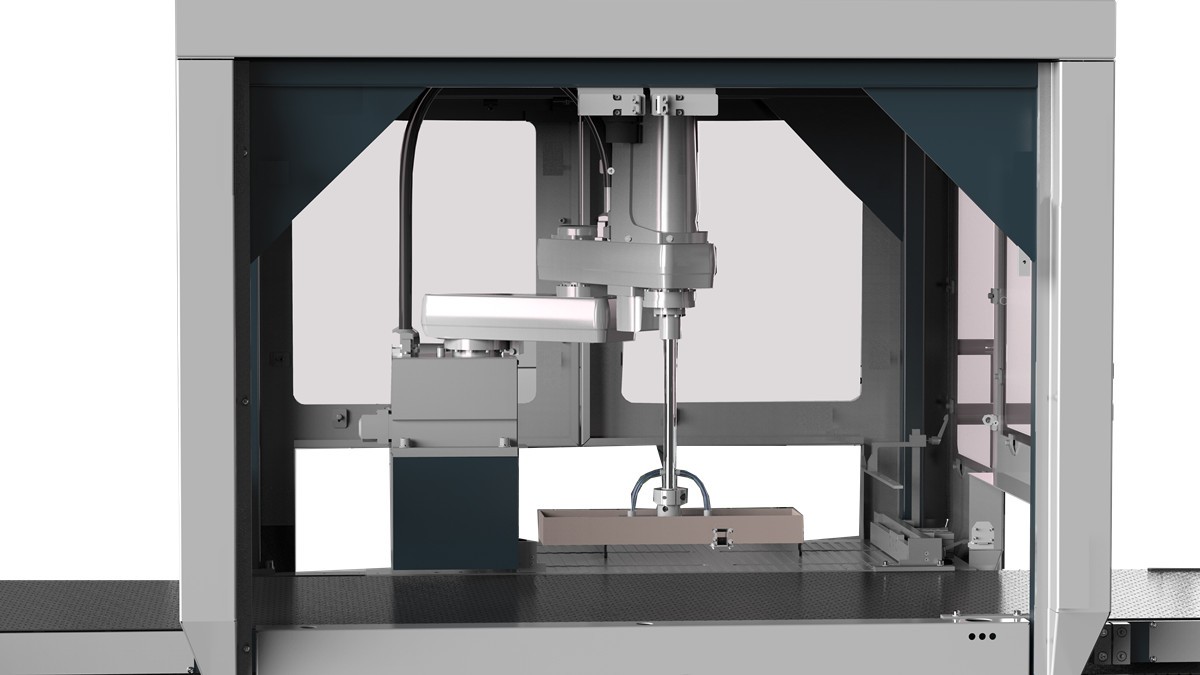

8. CCD positioning system and robot arm for positioning the box shells.
9. Automatic control system of glue viscosity (optional)

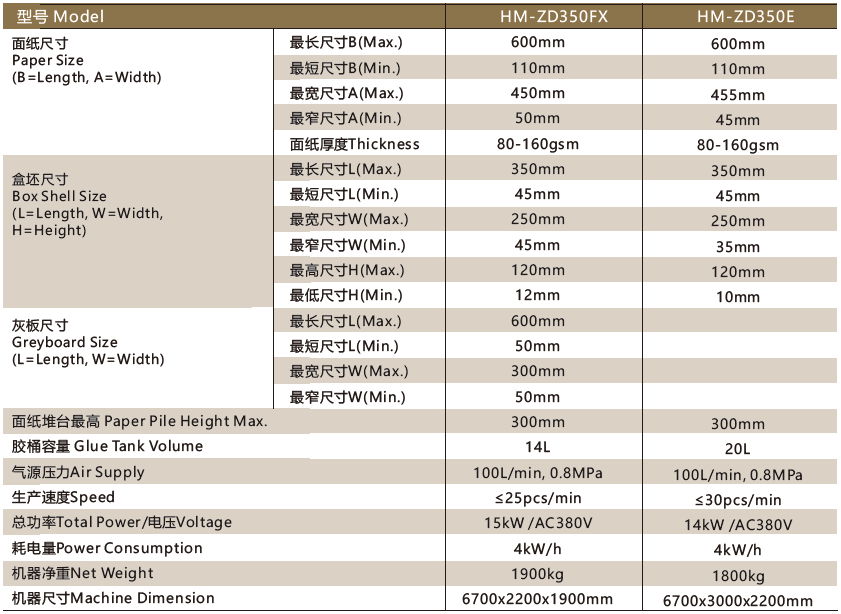

Technical parameters
