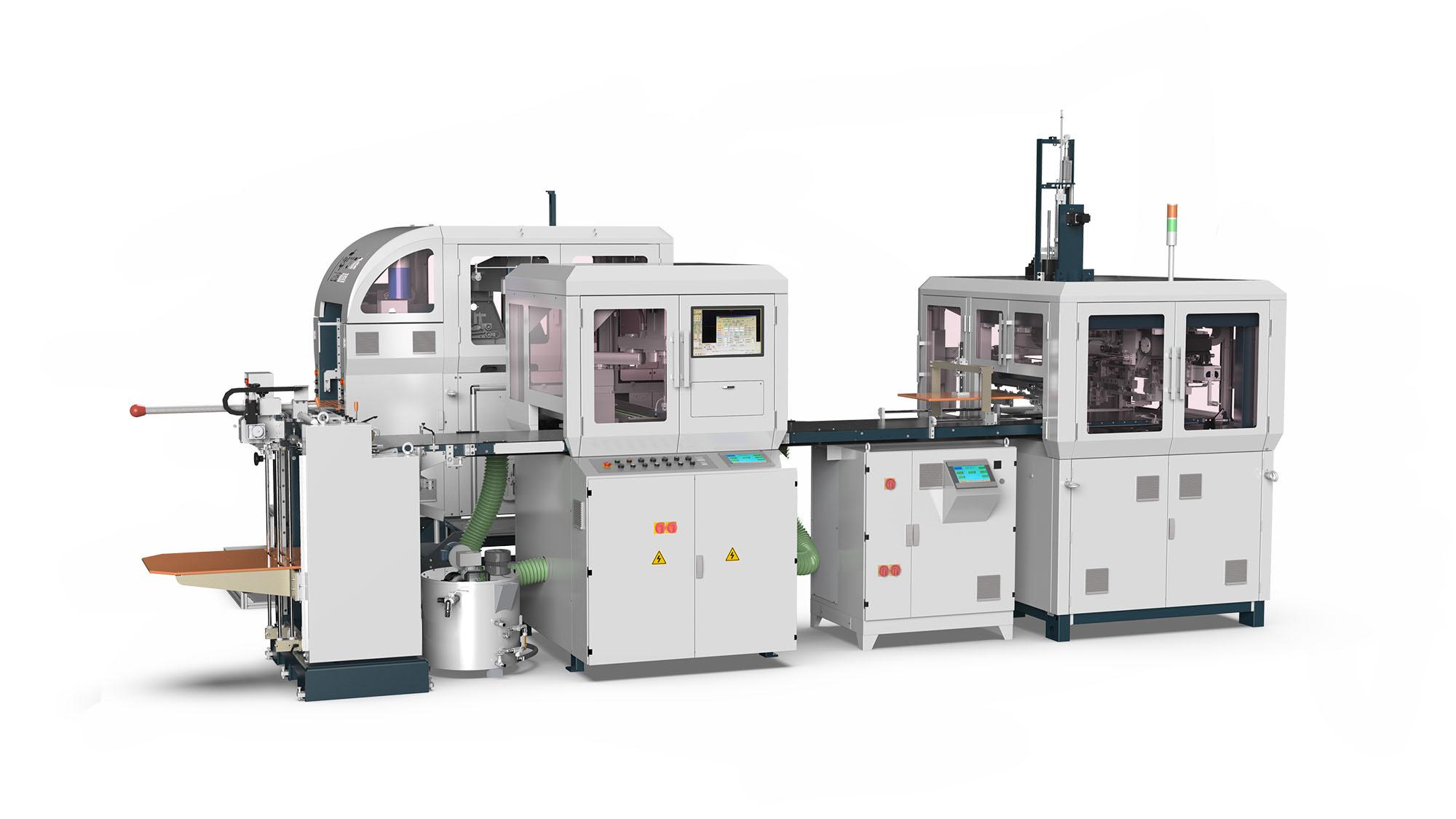

HM-ZD6418G/HM-ZD6418C-G automatic Rigid box machine product introduction:

HM-ZD6418G/HM-ZD6418C-G Automatic Rigid Box Machine is suitable to make various big size premium boxes' mass production ,such as mobile phone boxs,gift boxs,cosmetic boxes,watch boxes,slanting(option),slip case boxes(option),clamshell box (option)etc,Size range is bigger,more suitable for current packaging market.Machine appearance is new design which is safer and more beautiful.

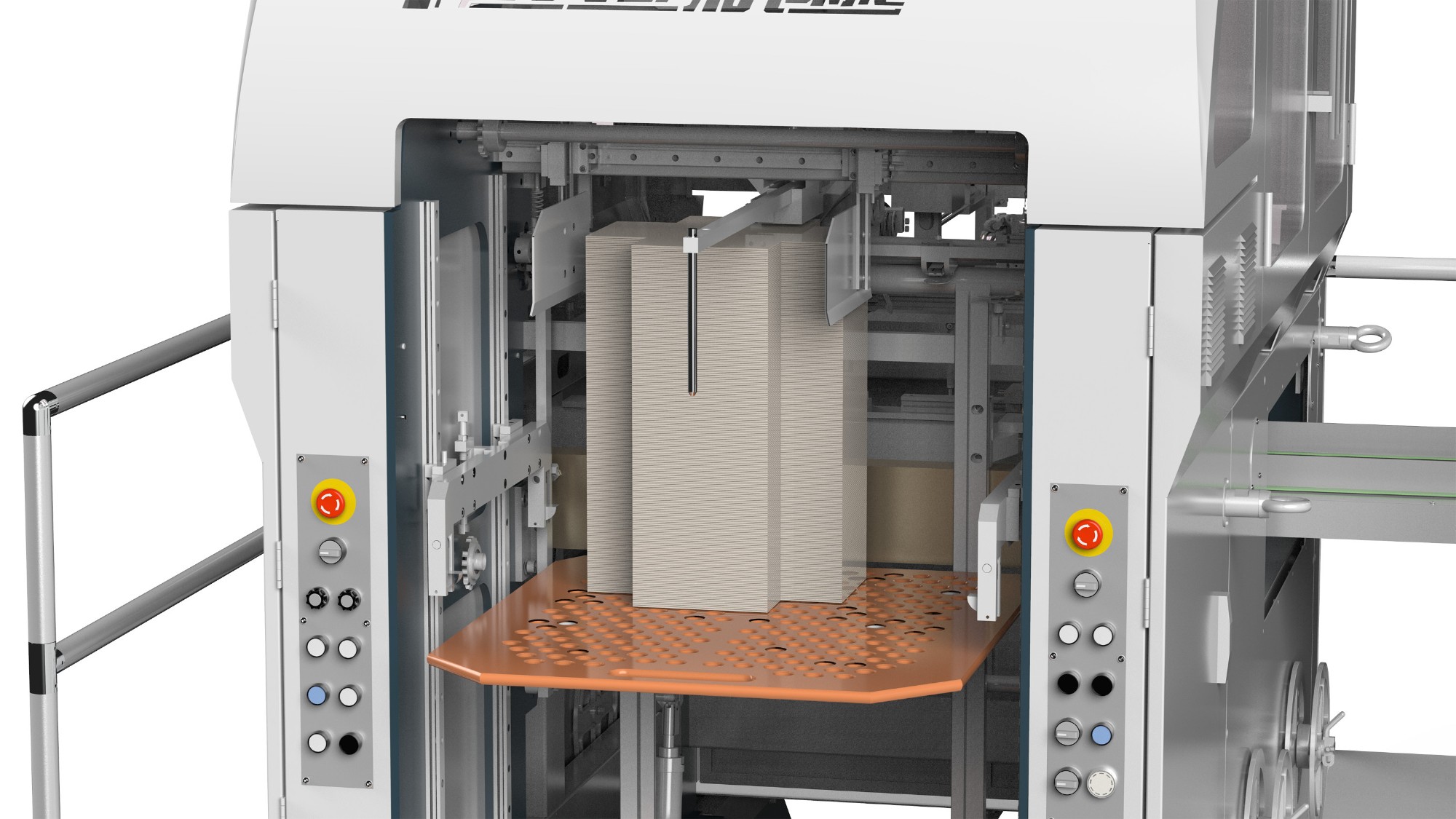

HM-ZD6418G/HM-ZD6418C-G adopts PLC and man-machine control ,camera tracing system,and can automatically feed cover paper,feed greyboard,paste four corners,spot greyboard,lift box,fold corner edges and wrap box.

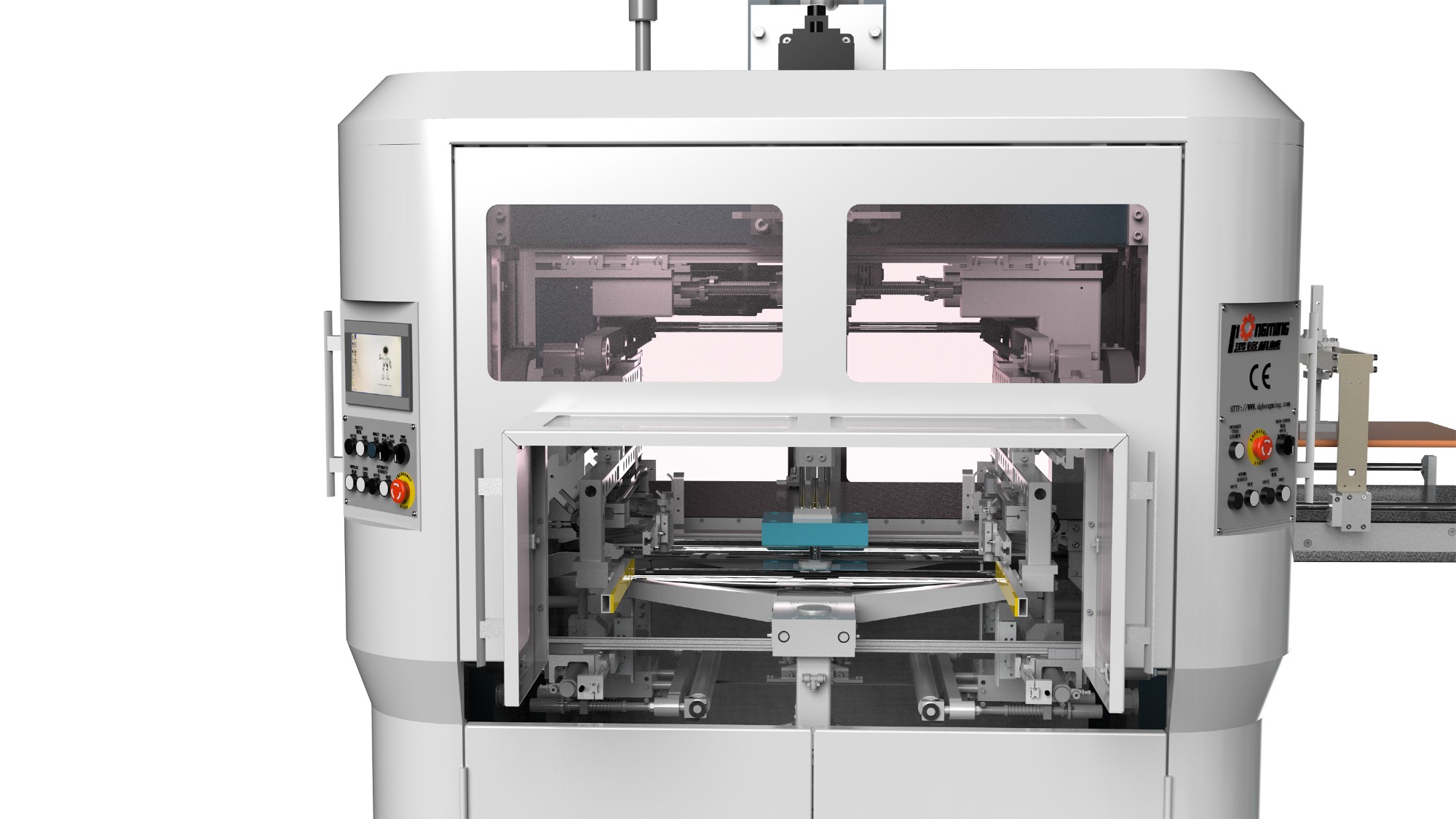

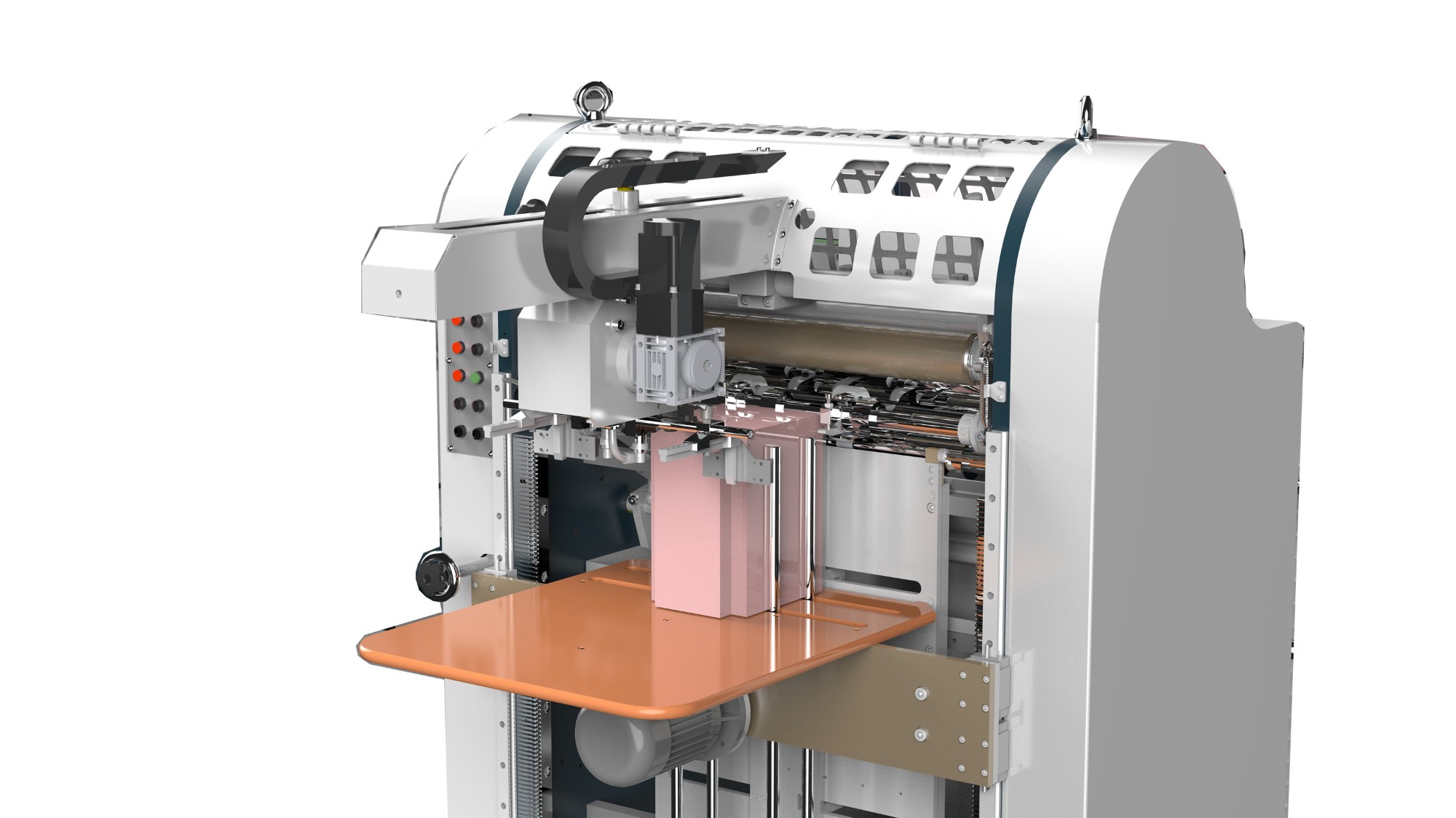

The feeder,the gluer and the conveyor are driven by well known servos which have continuously variable transmission and enjoys high accuiacy easy adjusting, and efficiency. The spotting unit adopts camera tracing system and robot arm to pick and spot the greyboard, enhancing the spotter accuracy to ±0.05mm,and its spotting and adjusting is more faster. The forming unit employs japan THK linear slider and virtual electronic cam driving system, guaranteeing the stable quality and fluent movement and enlage the folding-in depth and corner edges.


Features and function:

1.Suit to all kinds of rigid boxes in mass production.

2.Parameter adopts computer digital setting.

3.Auto error stop and display.

4.Automatically feed paper and greyboard.

5.24-hour control for glue pre-heating.

6.Wrapper can input 300 product formulas.

7.Corner pasting part with independent man-machine control and heating system.

8.Adopts YASKAWA servo control system.

9.Spotter by camera tracing system and SCARA(selective accuiacy±0.05mm).

10.Wrapper can automatic lift amd wrap bo.

11.Automatic control system for glue viscosity(optional).


Features and function:




Note:

1.The finished box max.size are determined by paper size .

A(min)≤W+2H+2T+2R≤A(min);B(MAX)≤W+2H+2T+2R≤B(mMAX)

2.The production speed of the rigid box machine is determined by the box size.

   The paper and the greyboard materials.

3.Seller doesn't provide air compressor.

4.Item 5,item,6,item7,and item 8 are optional devices for HM-ZD6418G and HM-ZD6418C-D.
