Product Display

HM-600G Automatic Gluing and Spotter Machine Descripion:

HM-600G Automatic Gluing and Spotter Machine is an automatic equipment for high-precision positioning of large-size premium boxes. It's suitable to all kinds of rigid box positioning process.

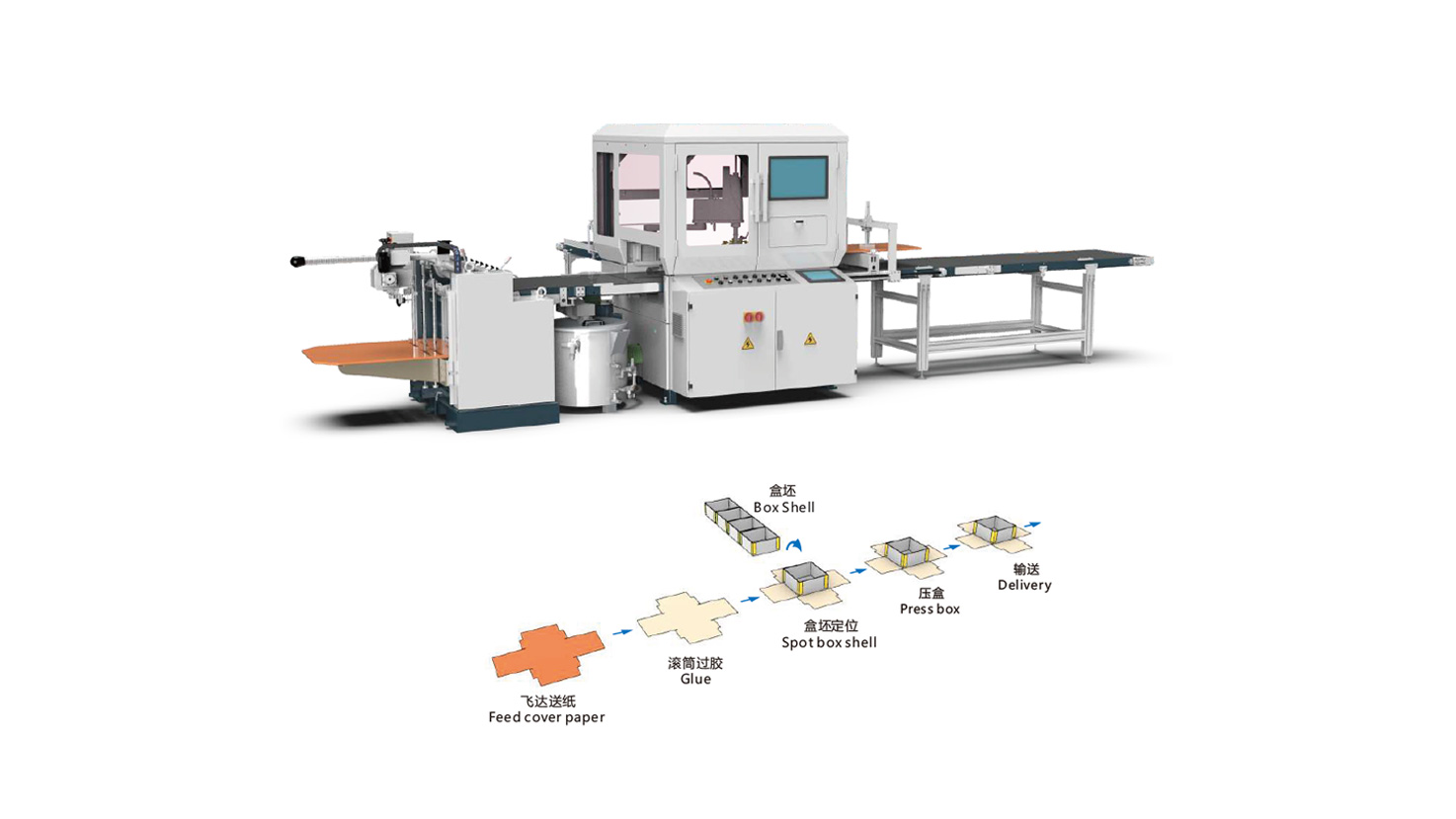

This machine adopts PLC and touch screen man-machine control system and CCD positioning system to realize paper feeding, glue and positioning automatically. In feeder, the conveyor and conveyor belts are driven by servo system .The machine has continuously variable transmission and enjoys high accuracy ,easy adjusting ,and high efficency .The spotting unit adopts camera tracing system and robot arm to pick and spot the greyboard ,enhancing the spotter accuracy to ±0.05mm, and the speed is faster.

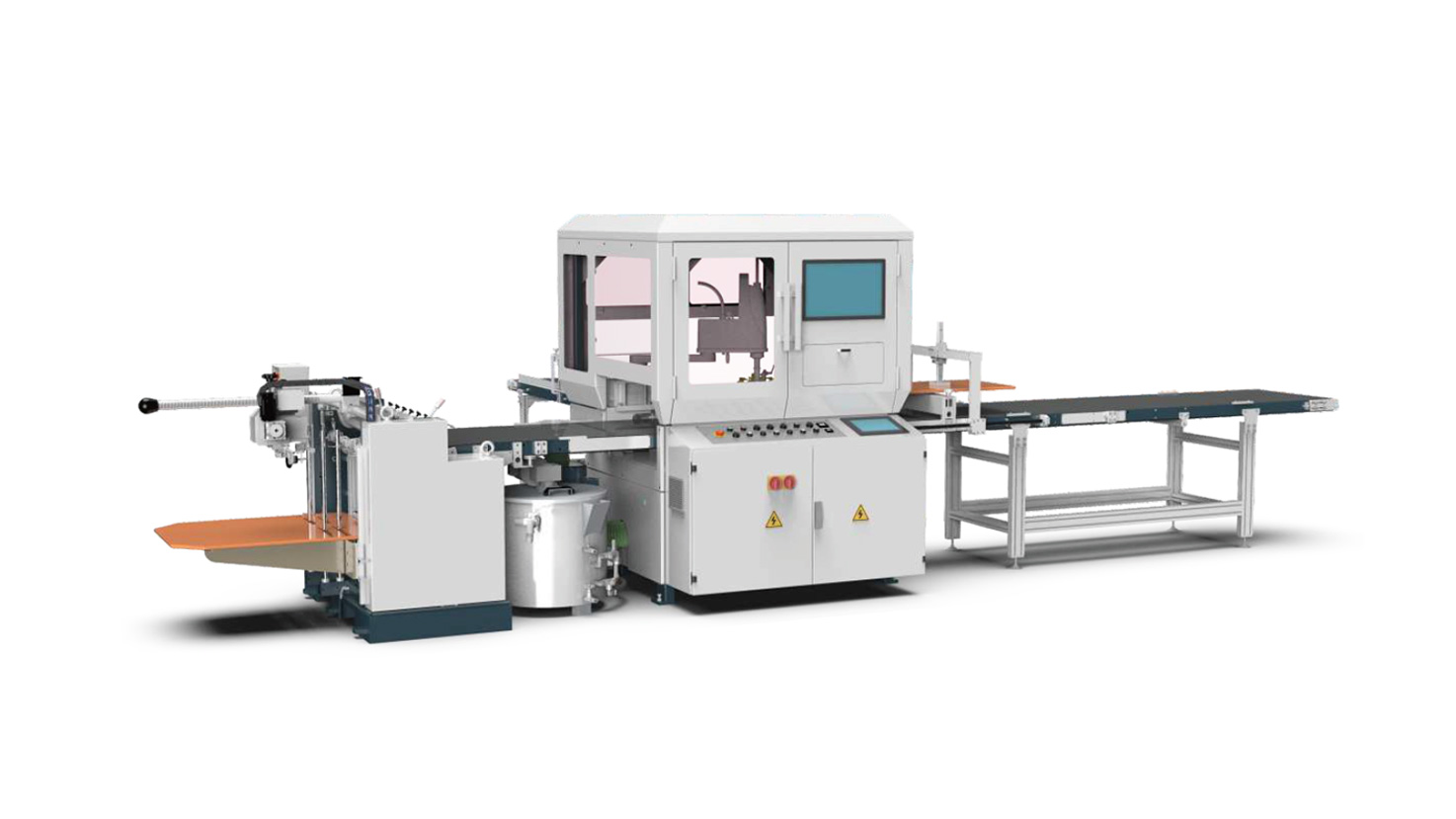

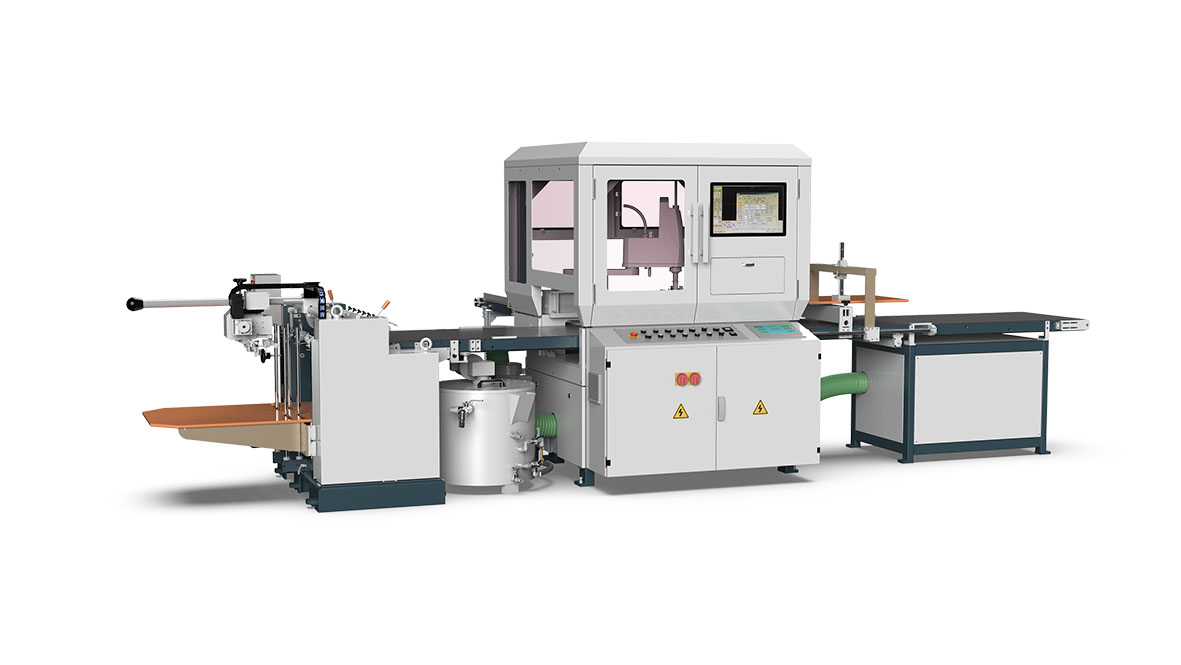

HM-600G Automatic Gluing and Spotter Machine



Features and function:

1. Automatic production for the positioning process of various
paper and box shells.
2. Parameter adopts computer digital setting.
3.
Auto error stop and display.

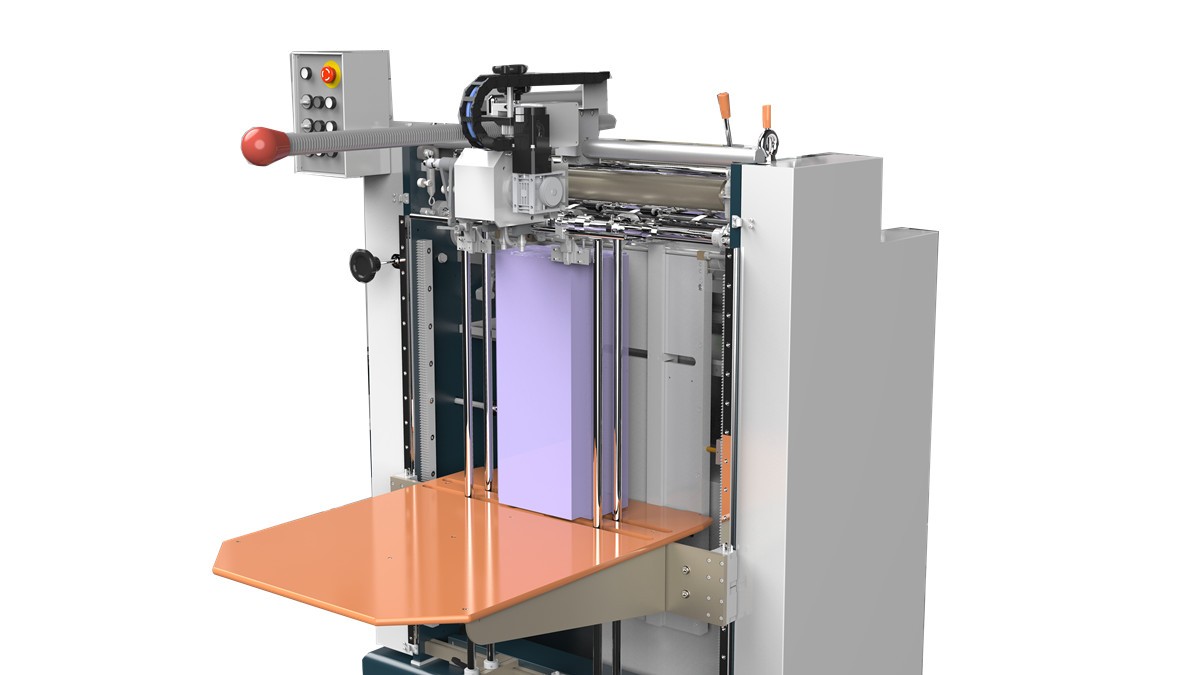

4. Automatically feed paper and
box shell.
5. 24-hours control for glue pre-heating.
6. Adopts servo motor control system..

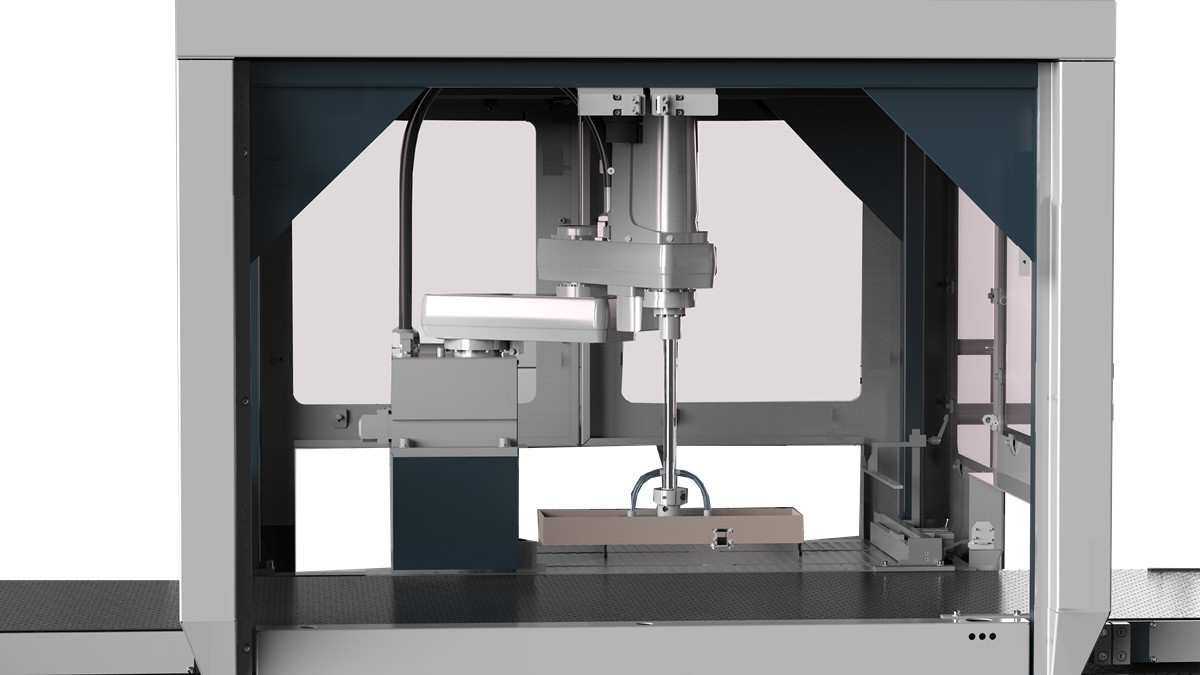

7. CCD positioning system and robot arm for positioning the box
shell (positioning accuracy±0.05mm)
8. Automatic control system of glue viscosity (optional)

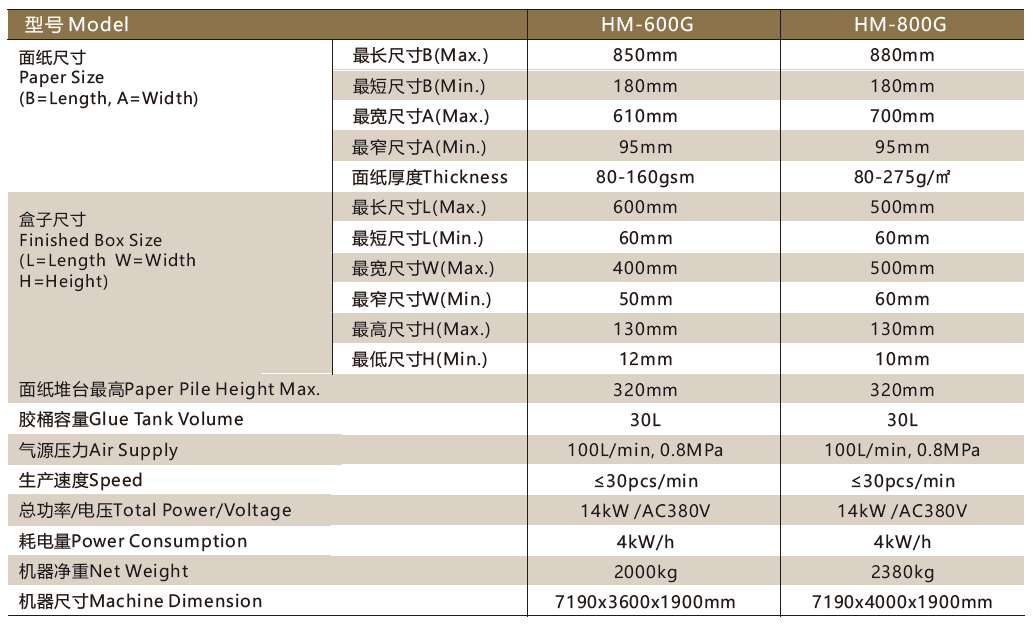

Technical parameters
