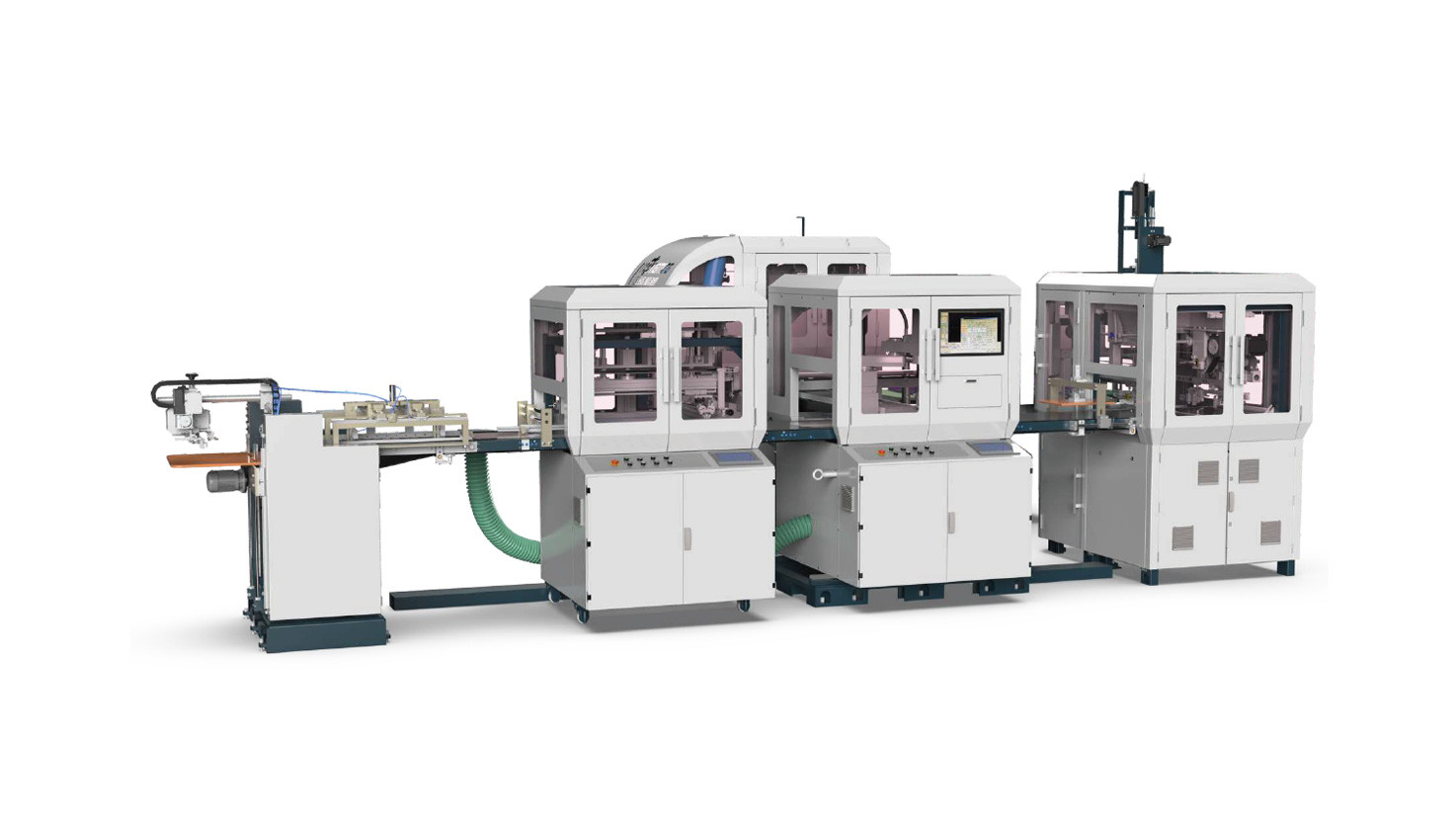

HM-ZD6435B Automatic Rigid Box Machine Description:

HM-ZD6435B Automatic Rigid Box Machine, designed for the regular-size premium box, which mainly for partial screen glue. It is suitable to make various types of rigid boxes for mass production, such as mobile phone boxes, gift boxes, cosmetic boxes, watch boxes, slanting boxes, etc. Size range is bigger, more stable for current packaging market. Machine's appearance is new design which is safer and more beautiful.

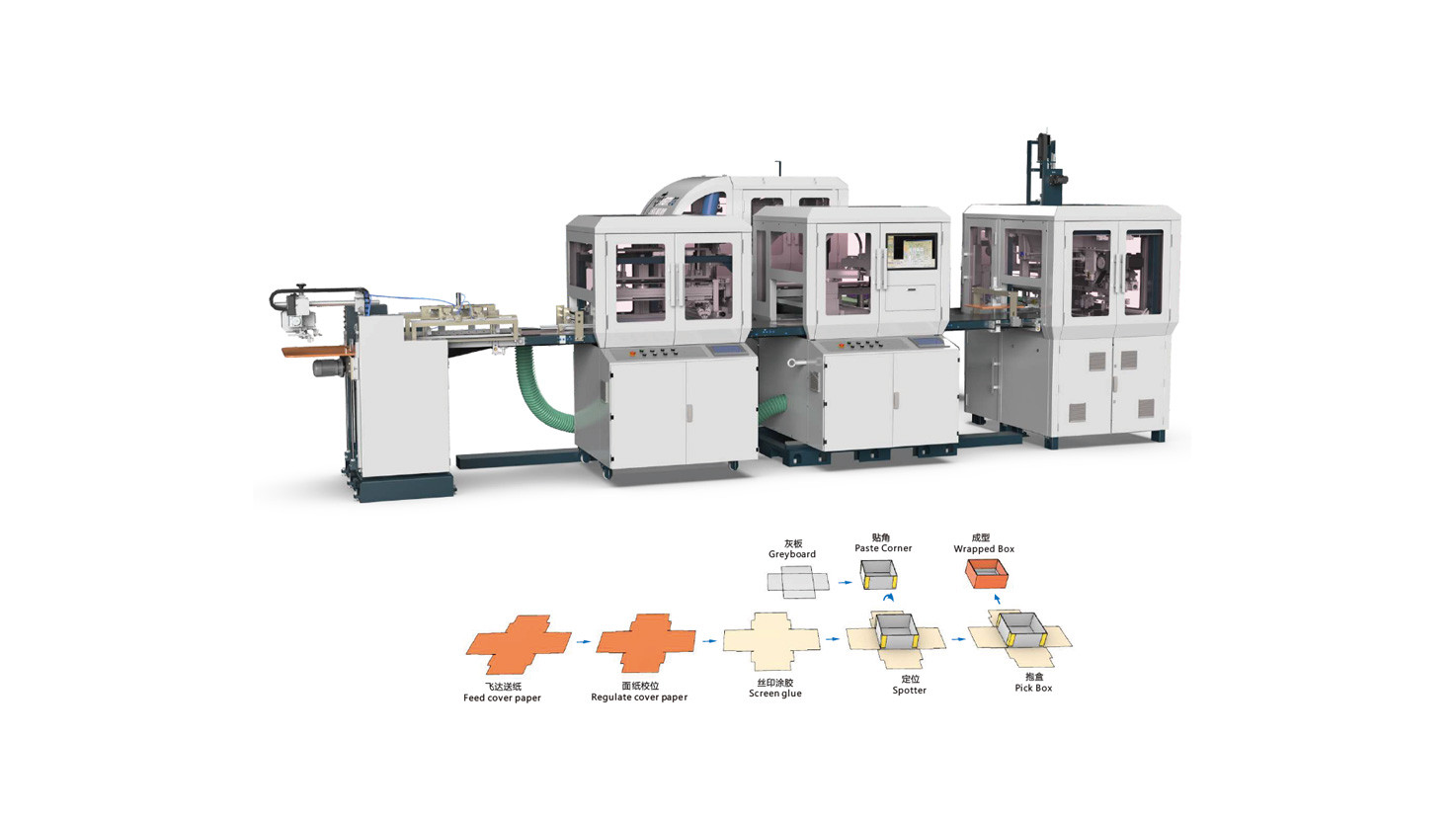

HM-ZD6435B adopts PLC and man-machine control, camera tracing system, and can automatically feed cover paper, cover paper correction,screen gluing,feed greyboard, paste four corners, spot greyboard, lift box, fold in corner edges and wrap box.

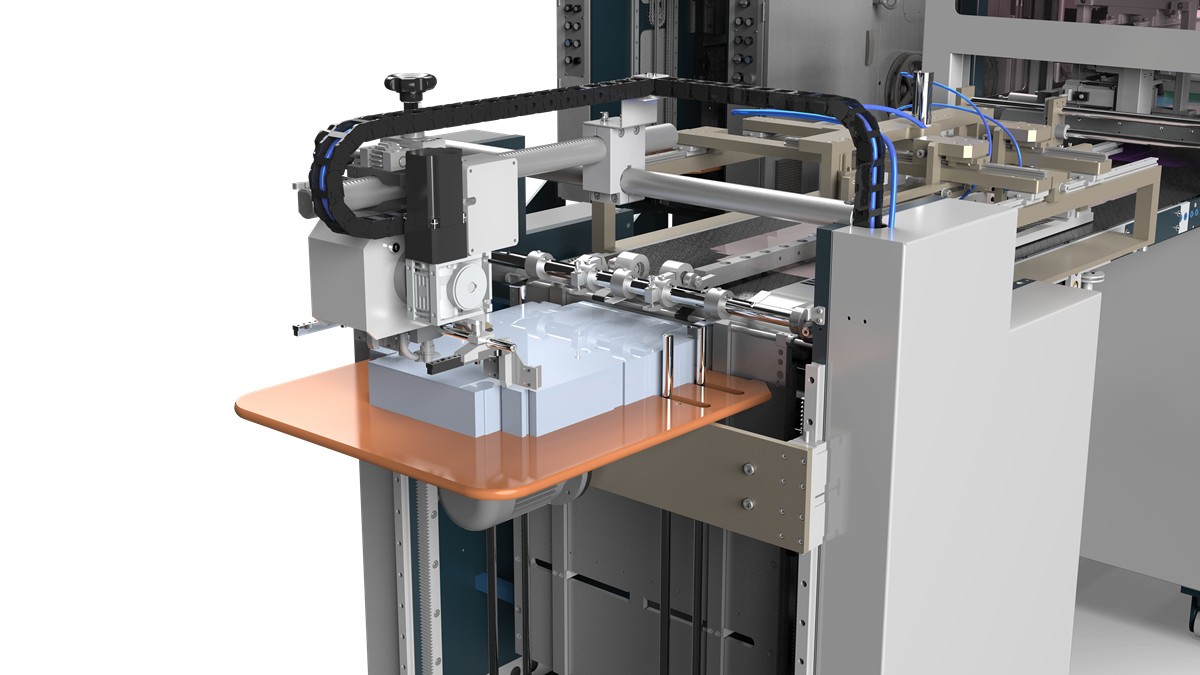

The feeder, the gluer and the conveyor are driven by well known servos which have continuously variable transmission, and enjoys high accuracy, easy adjusting, and high efficiency. The spotting unit adopts camera tracing system and robot arm to pick and spot the greyboard ,enhancing the spotter accuracy to ±0.05mm, and its spotting and adjusting is more faster .The forming unit employs THK linear slider and virtual electronic cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges.




HM-ZD6435B Automatic Rigid Box Machine Features and function:

1. Suit to all kinds of rigid boxes in mass production.

2. Parameters adopts computer digital setting ;

3. Auto error stop and display;

4. Automatic feed paper and greyboard;

5. Automatic feed paper and draw gauge system;

6. Corner pasting part with independent man-machine control and heating system;

7. Adopts YASKAWA servo control system;

8. Spotter by camera tracing system and SCARA (Selective Compliance Assembly Robot Arm) (spotting accuracy±0.05mm);

9. Wrapper can automatic lift and wrap box

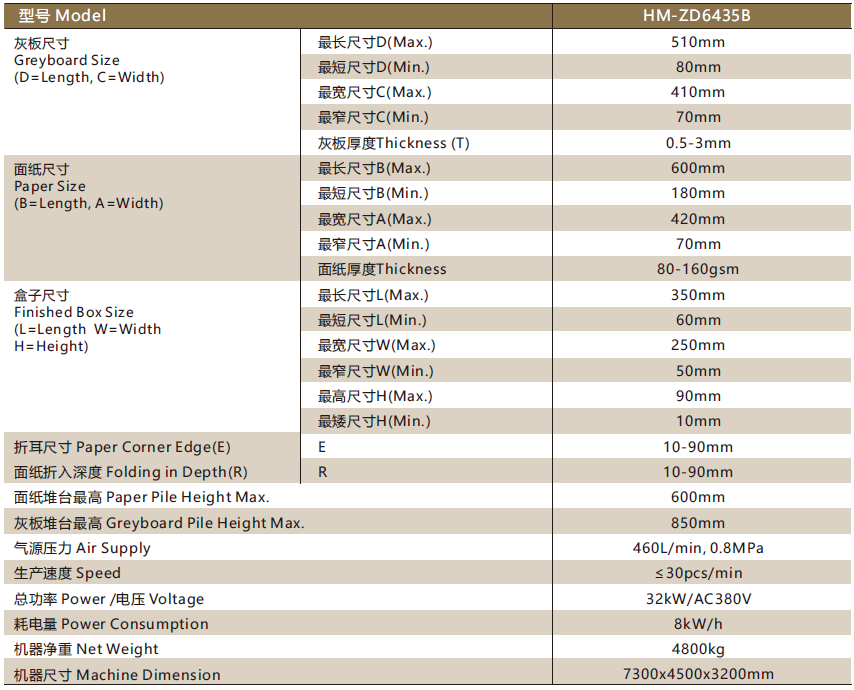

Technical parameters




 HM-ZD6435B Automatic Rigid Box Machine


Note:

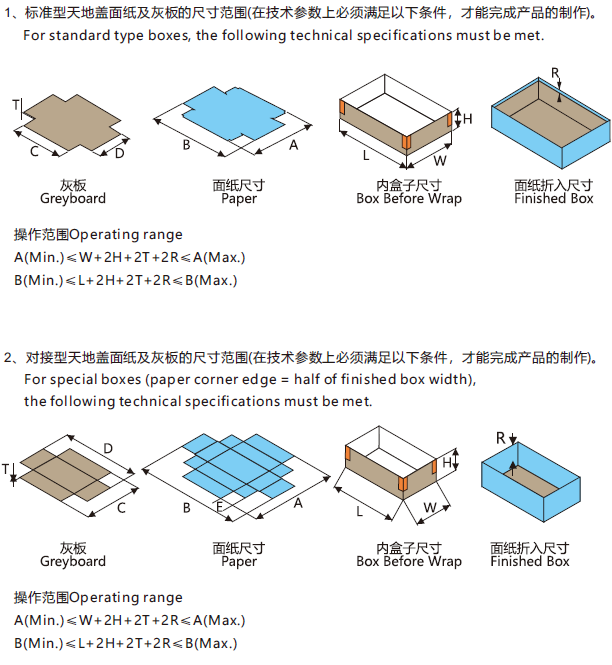

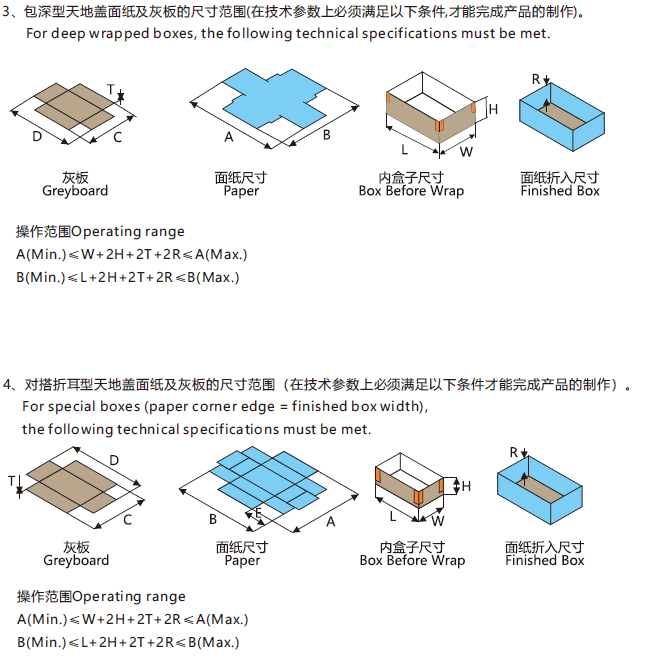

1The Finished Box Max. sizes are determined by paper size.A(Min.)W+2H+2T+2RA(Max.); B(Min.)L+2H+2T+2RB(Max.)

2The production speed of the rigid box machine is determined by the box size, the paper and the greyboard materials.

3Seller doesn't provide air compressor. (8atm=0.808MPa, 7.5kW compressor is needed)
