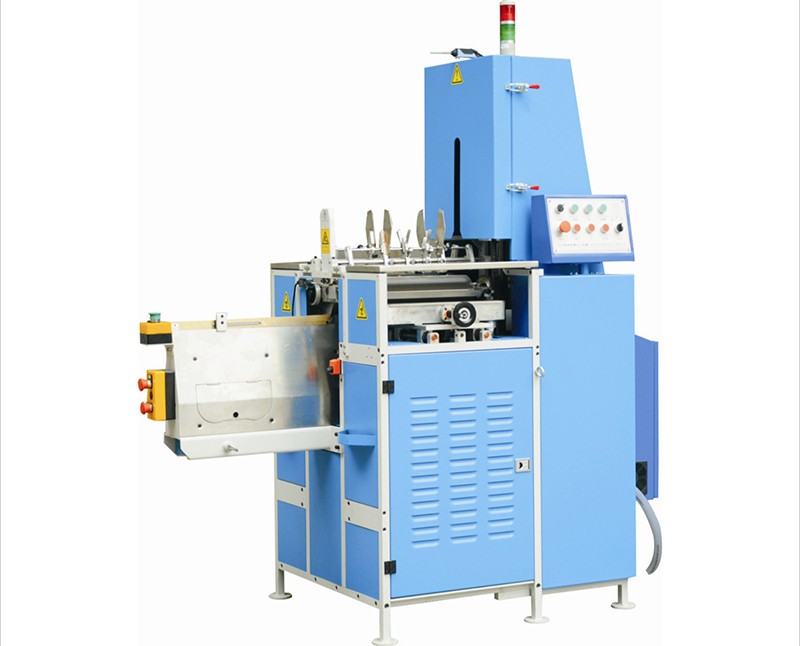

HM-130 Book Casing-in Machine:




Rigid box machineRigid box machine



















































Function and features:



Book casing is widely applied to the casing-in process on deluxe book, notebook, universal folder, etc.



The process:

1.     The book block is put on the bottom mold, and the book case is put on the upper mold (pickup board).

2.     When the machine works, the bottom mold enters the machines.

3.     Then this bottom mold rises and both sides of the book block are coated with cold glue at the same time before it reaches the book case on the upper mold.

4.     The operator needs to press the book case onto the content to enhance the adhesion.

5.     Then the operator can remove the book.

6.     At last, the machine will reset itself before operator could process next book.



It is characterized as the following 5 points:

1.     Simple and convenient in operation: 1 or 2opetators can finish the job;

2.     Quick in changing into another book size: it only needs 20-30 minutes to adjust to new size; the best glue thickness on the roller are set before leave factory;

3.     Well-proportion in both sides of book blocks: both sides of book block are glued and cased-in at the same time;

4.     Steady and reliable in movement: it has paddle mode, inching mode and automatic mode.

5.     Besides, this HM-130 Book Casing-in Machine adapts to large, medium and small batches of production.





Main parameters:

Model

HM-130A

HM-305

Speed

7-12pcs/min

7-10pcs/min

Book Size (Max.)

350x250mm

520x380mm

Book Size(Min.)

90x60mm

90x60mm

Block Thickness(Max.)

70mm

70mm

Block Thickness(Min.)

8mm

8mm

Voltage

AC380V

AC380V

Power

1.5KW

1.5KW

Machine Weight

540kg

480kg

Machine Dimension

1820x930x2100mm

1800x700x1800mm
