Hardcover MachineHOME > PRODUCTS > Hardcover Machine

Product Display

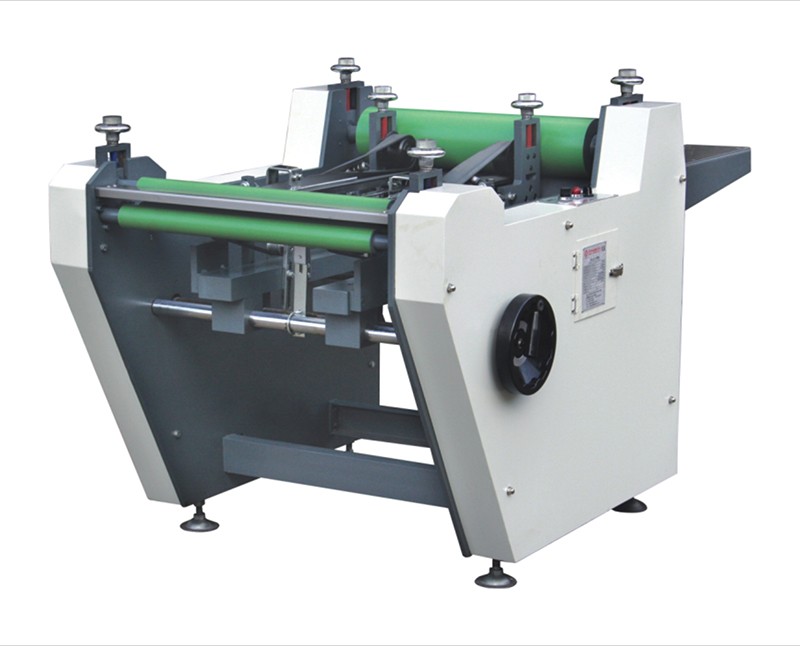

HM-600CBookcase Double-side Folding-in Machine mainly used to fold two long sides of the bookcase coverpaper. The coverpaper is bended by the rolling belts while the bookcase is moving forward.



HM-600CDouble-sided Edge Folding Machine has superior quality and reasonable price, and is suitable for all book cover.



This is one part of Semi-automatic Case Maker, mainly for long-side cover folding.

It would be better match with Gluing Machine( Such as our item HM-650A, HM-650B, HM-650C).



Working details:

Firstly: glue the cover paper with Gluing Machine;

Secondly: fix the cardboard to the glued cover pape by hand.

Thirdly: the fixed unit will be conveyed to HM-600Cwhere the tow long sides will be folded at one time.

Besides, this machine could also press the folded edges with rubble rollers and avoid scratching on the paper.

parameters:



Model

HM-600C

HM-300

Paper Thickness

80-200gsm

80-200gsm

Hard Cover Width

100-600mm

50-300mm

Hard Cover Length

100-1000mm

100-1000mm

Greyboard Thickness

1-4mm

1-4mm

Production Speed

10-30pcs/min

10-30pcs/min

Voltage

AC220V

AC220V

Power

0.75KW

0.4KW

Net Weight

530kg

270kg

Machine Dimension

1850x1150x1050mm

2000x600x1000mm



Rigid box machine




TAG:   Automatic rigid box making machine, rigid box line, rigid box making machine, Set up box machine, cardboard box machine, mobile phone box machine
