Product Display

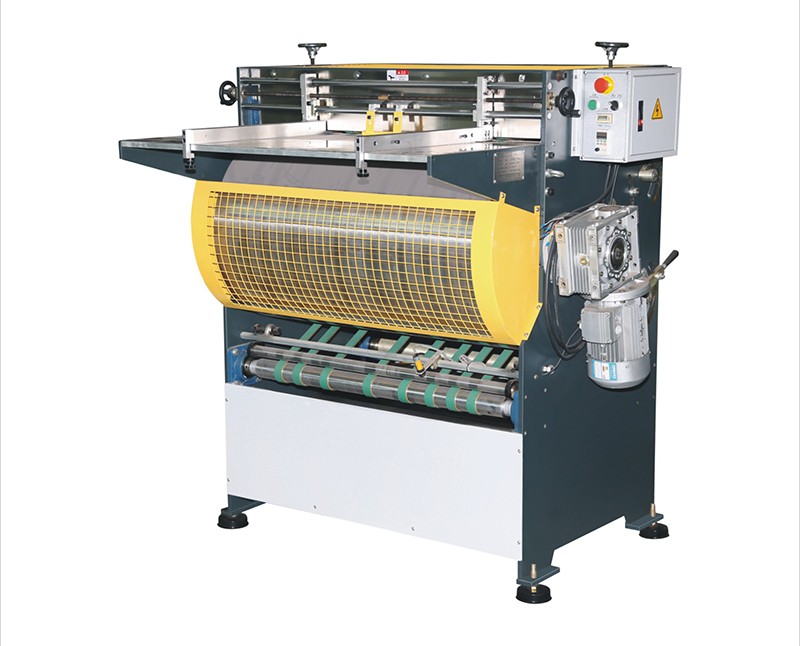

HM-1200B Notching Machine Without Dust

Rigid box machine

Features and functions:



HM-1200B Notching machine is for notching various types and models of gift boxes and paperboard boxes to make a beautiful appearance, upgrading the products to meet an ideal effect. All the deluxe boxes could not stand the outside grooves on the finished box bottom edge, thus, the inner groove could perfectly avoid this cosmetic issue. Our automatic notching machines could process over 8 tons of greyboard everyday.



This machine needs an operator to feed the grayboard, which means munual feeding.

Technical Parameters:

Model

HM-1200B

Cardboard Width

50-950mm

Cardboard Length

100-530mm

Notch Distance

0-900mm

Cardboard Thickness

300g-4mm

Notch Angle

80-140degree

Max. Number of Slots

8 slots

Roller rolling speed

10-35m /min

Power/ Voltege

1.5kW/380v

Net Weight

1200kg

Overall demension

1300×1500×1580 mm





Package details:



Model

Name

Wooden case

N.G (kg)

G.G (kg)

L(m)

W(m)

H(m)

Total CBM

HM-1200B

Notching Machine

1

1200

1300

1.54

1.35

1.68

3.49





The knife to notch:


Rigid box machine



The inner of the machine and the angel to adjust:

   Rigid box machineRigid box machine


Direct output:



Rigid box machine



V-shape outputs:


Rigid box machine

Rigid box machine

Rigid box machine


Channel outputs:



Rigid box machine Rigid box machine



More: If the greyboard is first half-through pressed in the backside, then it is notched on the frontside, the four corners will automatically fall off during the notching process.

Rigid box machine

Rigid box machine
