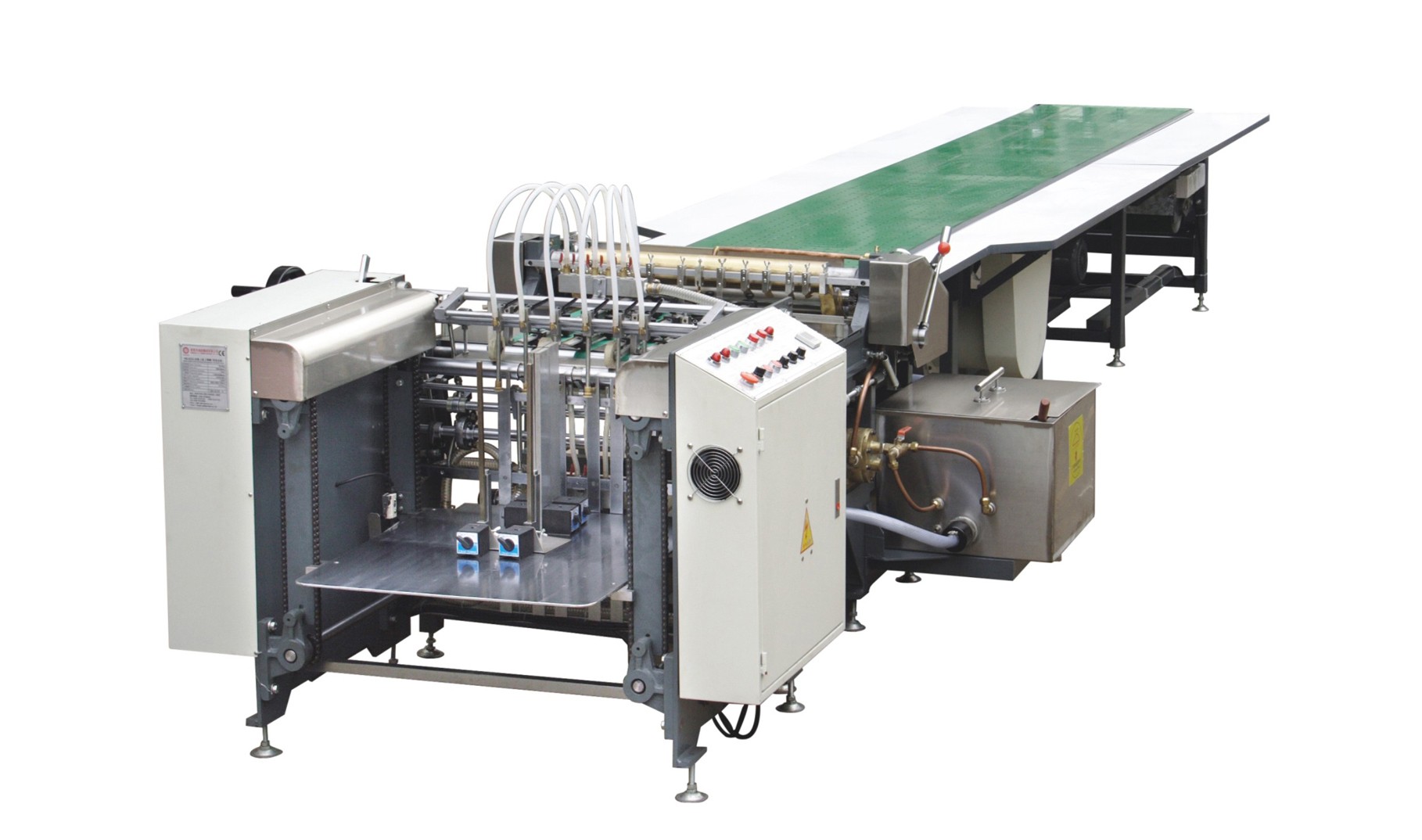

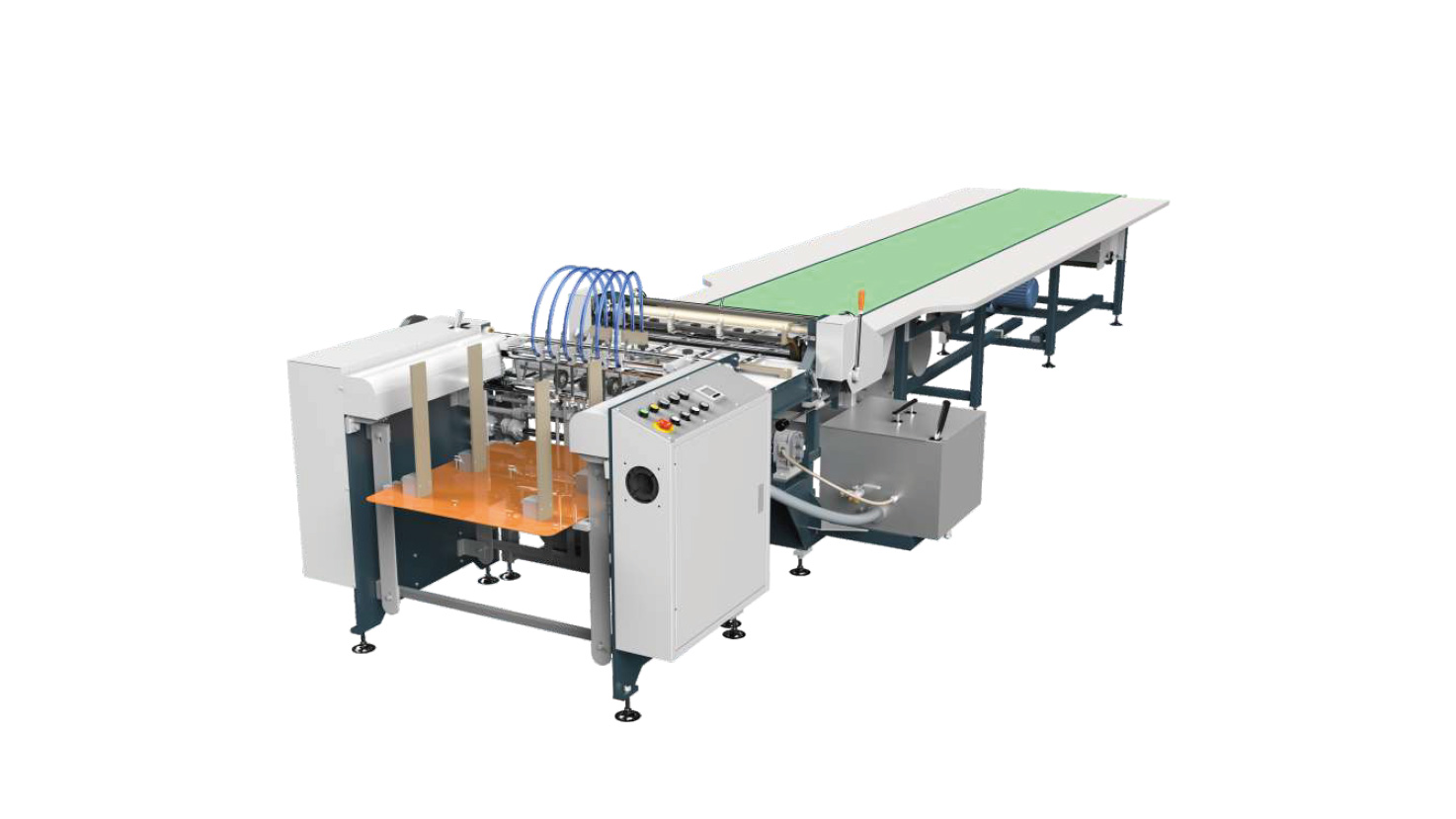

HM-650A Automatic Gluing Machine(Feeder):



Function and features:

Automatic gluing machine is suitable for feeding and gluing the paper which is for making book cover, rigid box, set up box, etc.

It has the function of automatic feeding paper and gluing, automatic temperature control and 24-hours timer.

The draft fan under the assembly lines prevents cover paper from curling and bubbling.

Feeder absorption and feed are applied, which contribute to the characteristic of steady and quick paper conveyance.

Hot melt adhesives (animal adhesives) are used for health and environmental protection, and they also save cost because of the recycle system and the adjustable speeds.

Ps:
1, Standard 5m working table; 7m, 9m working table can be customized per to the customer's need.
2, Remodel for white glue.

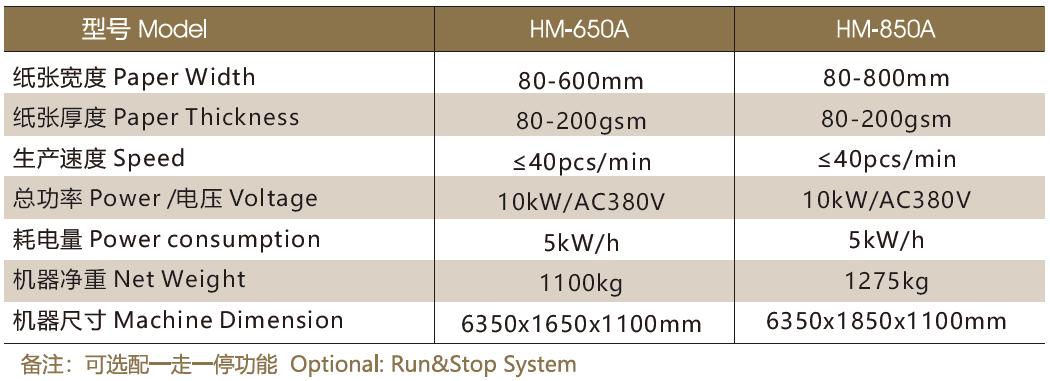

Main parameters:

Model

HM-650A

HM-850A

Working Width

80-600mm

80-800mm

Sheet Thickness

80-200gsm

80-200gsm

Production Speed

7-40pcs/min

7-40pcs/min

Voltage

AC380V

AC380V

Power

7.45kW

7.45kW

Dimension

6350x1650x1100mm

6350x1850x1100mm

Net Weight

1100kg

1275kg




TAG:   Automatic rigid box making machine, rigid box line, rigid box making machine, Set up box machine, cardboard box machine, mobile phone box machine
